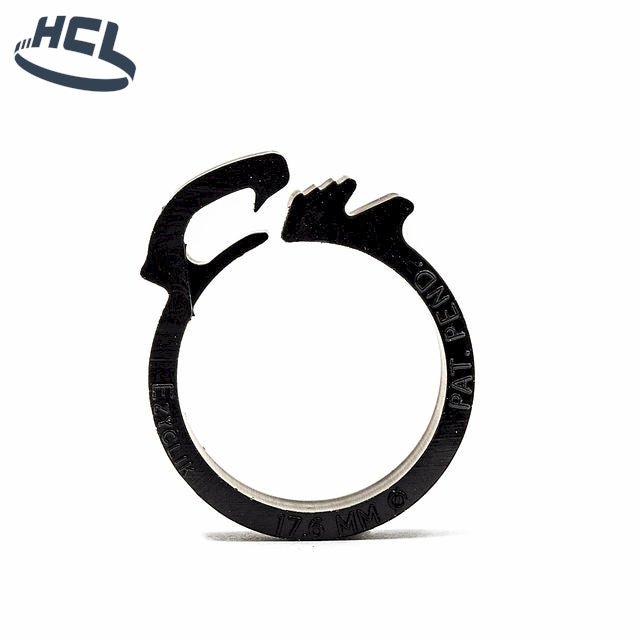

HCL Snap Fit Low Profile Polymer Hose Clamp - Black PA66 Nylon

HCL Snap Fit Low Profile Polymer Hose Clamp - Black PA66 Nylon

EZY-P-8.5-PA66-BK

$0.48
$0.48
Sale Sold out
Shipping calculated at checkout.

2564 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Colour
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
Material ?

Material: The core substance used to manufacture the product (e.g., steel, plastic, rubber). Affects durability and performance.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Reusable ?

Reusable: Yes / No response If product can or cant be reused.

Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

5/16 in - 23/64 in - 8.0mm - 9.0mm - 5/16 in (8.0mm) - Black - EZY-P-8.5-PA66-BK - PA66 - Excellent - Yes - $0.48 2564
21/64 in - 23/64 in - 8.2mm - 9.2mm - 5/16 in (8.0mm) - Black - EZY-P-8.7-PA66-BK - PA66 - Excellent - Yes - $0.48 130
21/64 in - 3/8 in - 8.4mm - 9.4mm - 5/16 in (8.0mm) - Black - EZY-P-8.9-PA66-BK - PA66 - Excellent - Yes - $0.50 973
11/32 in - 3/8 in - 8.7mm - 9.7mm - 5/16 in (8.0mm) - Black - EZY-P-9.2-PA66-BK - PA66 - Excellent - Yes - $0.50 1107
23/64 in - 25/64 in - 9.0mm - 10.0mm - 5/16 in (8.0mm) - Black - EZY-P-9.5-PA66-BK - PA66 - Excellent - Yes - $0.53 55525
3/8 in - 13/32 in - 9.5mm - 10.5mm - 5/16 in (8.0mm) - Black - EZY-P-10.0-PA66-BK - PA66 - Excellent - Yes - $0.55 63919
27/64 in - 15/32 in - 10.9mm - 11.9mm - 5/16 in (8.0mm) - Black - EZY-P-11.4-PA66-BK - PA66 - Excellent - Yes - $0.55 77921
29/64 in - 31/64 in - 11.5mm - 12.5mm - 5/16 in (8.0mm) - Black - EZY-P-12.0-PA66-BK - PA66 - Excellent - Yes - $0.57 1073
15/32 in - 33/64 in - 12.0mm - 13.0mm - 5/16 in (8.0mm) - Black - EZY-P-12.5-PA66-BK - PA66 - Excellent - Yes - $0.57 26683
31/64 in - -33/64 in - 12.2mm - 13.2mm - 5/16 in (8.0mm) - Black - EZY-P-12.7-PA66-BK - PA66 - Excellent - Yes - $0.57 2735
1/2 in - 35/64 in - 12.7mm - 13.7mm - 5/16 in (8.0mm) - Black - EZY-P-13.2-PA66-BK - PA66 - Excellent - Yes - $0.60 2222
33/64 in - 9/16 in - 13.2mm - 14.2mm - 5/16 in (8.0mm) - Black - EZY-P-13.7-PA66-BK - PA66 - Excellent - Yes - $0.60 27998
35/64 in - 19/32 in - 14.0mm - 15.0mm - 5/16 in (8.0mm) - Black - EZY-P-14.5-PA66-BK - PA66 - Excellent - Yes - $0.62 2825
9/16 in - 19/32 in - 14.1mm - 15.1mm - 5/16 in (8.0mm) - Black - EZY-P-14.6-PA66-BK - PA66 - Excellent - Yes - $0.62 229
37/64 in - 39/64 in - 14.5mm - 15.5mm - 5/16 in (8.0mm) - Black - EZY-P-15.0-PA66-BK - PA66 - Excellent - Yes - $0.64 14064
19/32 in - 41/64 in - 15.2mm - 16.2mm - 5/16 in (8.0mm) - Black - EZY-P-15.7-PA66-BK - PA66 - Excellent - Yes - $0.64 22908
39/64 in - 41/64 in - 15.4mm - 16.4mm - 5/16 in (8.0mm) - Black - EZY-P-15.9-PA66-BK - PA66 - Excellent - Yes - $0.64 506
5/8 in - 43/64 in - 16.0mm - 17.0mm - 5/16 in (8.0mm) - Black - EZY-P-16.5-PA66-BK - PA66 - Excellent - Yes - $0.66 3313
41/64 in - 11/16 in - 16.3mm - 17.3mm - 5/16 in (8.0mm) - Black - EZY-P-16.8-PA66-BK - PA66 - Excellent - Yes - $0.66 232
21/32 in - 11/16 in - 16.6mm - 17.6mm - 5/16 in (8.0mm) - Black - EZY-P-17.1-PA66-BK - PA66 - Excellent - Yes - $0.66 25323
43/64 in - 45/64 in - 17.0mm - 18.0mm - 5/16 in (8.0mm) - Black - EZY-P-17.5-PA66-BK - PA66 - Excellent - Yes - $0.70 1962
43/64 in - 23/32 in - 17.1mm - 18.1mm - 5/16 in (8.0mm) - Black - EZY-P-17.6-PA66-BK - PA66 - Excellent - Yes - $0.72 6501
11/16 in - 47-64 in - 17.5mm - 18.5mm - 5/16 in (8.0mm) - Black - EZY-P-18.0-PA66-BK - PA66 - Excellent - Yes - $0.72 1395
45/64 in - 3/4 in - 18.0mm - 19.0mm - 5/16 in (8.0mm) - Black - EZY-P-18.5-PA66-BK - PA66 - Excellent - Yes - $0.72 8500
47/64 in - 49/64 in - 18.6mm - 19.6mm - 5/16 in (8.0mm) - Black - EZY-P-19.1-PA66-BK - PA66 - Excellent - Yes - $0.75 666
3/4 in - 51/64 in - 19.1mm - 20.1mm - 5/16 in (8.0mm) - Black - EZY-P-19.6-PA66-BK - PA66 - Excellent - Yes - $0.75 2030
49/64 in - 13/16 in - 19.6mm - 20.6mm - 5/16 in (8.0mm) - Black - EZY-P-20.1-PA66-BK - PA66 - Excellent - Yes - $0.75 5009
51/64 in - 27/32 in - 20.3mm - 21.3mm - 5/16 in (8.0mm) - Black - EZY-P-20.8-PA66-BK - PA66 - Excellent - Yes - $0.75 18440
13/16 in - 27/32 in - 20.6mm - 21.6mm - 5/16 in (8.0mm) - Black - EZY-P-21.1-PA66-BK - PA66 - Excellent - Yes - $0.77 1656
27/32 in - 57/64 in - 21.5mm - 22.5mm - 5/16 in (8.0mm) - Black - EZY-P-22.0-PA66-BK - PA66 - Excellent - Yes - $0.77 159
27/32 in - 57-64 in - 21.6mm - 22.6mm - 5/16 in (8.0mm) - Black - EZY-P-22.1-PA66-BK - PA66 - Excellent - Yes - $0.77 246
7/8 in - 29/32 in - 22.1mm - 23.1mm - 5/16 in (8.0mm) - Black - EZY-P-22.6-PA66-BK - PA66 - Excellent - Yes - $0.79 519
57/64 in - 59/64 in - 22.6mm - 23.6mm - 5/16 in (8.0mm) - Black - EZY-P-23.1-PA66-BK - PA66 - Excellent - Yes - $0.79 238
29/32 in - 61/64 in - 23.1mm - 24.1mm - 5/16 in (8.0mm) - Black - EZY-P-23.6-PA66-BK - PA66 - Excellent - Yes - $0.82 5978
61/64 in - 63/64 in - 24.2mm - 25.2mm - 5/16 in (8.0mm) - Black - EZY-P-24.7-PA66-BK - PA66 - Excellent - Yes - $0.82 58
1 in - 1,1/32 in - 25.3mm - 26.3mm - 5/16 in (8.0mm) - Black - EZY-P-25.8-PA66-BK - PA66 - Excellent - Yes - $0.84 52002
1,1/32 in - 1,5/64 in - 26.3-mm - 27.3mm - 5/16 in (8.0mm) - Black - EZY-P-26.8-PA66-BK - PA66 - Excellent - Yes - $0.86 1769
1,5/64 in - 1,1/8 in - 27.5mm - 28.5mm - 5/16 in (8.0mm) - Black - EZY-P-28.0-PA66-BK - PA66 - Excellent - Yes - $0.88 1497
1,3/16 in - 1,7/32 in - 30.1mm - 31.1mm - 3/8in (9.0mm) - Black - EZY-P-30.6-PA66-BK - PA66 - Excellent - Yes - $0.90 297
1,7/32 in - 1,1/4 in - 30.9mm - 31.9mm - 3/8in (9.0mm) - Black - EZY-P-31.4-PA66-BK - PA66 - Excellent - Yes - $0.97 257
1,17/64 in - 1,19/64 in - 32.0mm - 33.0mm - 3/8in (9.0mm) - Black - EZY-P-32.5-PA66-BK - PA66 - Excellent - Yes - $1.06 472
1,27/64 in - 1,29/64 in - 36.0mm - 37.0mm - 3/8in (9.0mm) - Black - EZY-P-36.5-PA66-BK - PA66 - Excellent - Yes - $1.08 1548
1,21/32 in - 1,11/16 in - 41.9mm - 42.9mm - 3/8in (9.0mm) - Black - EZY-P-42.4-PA66-BK - PA66 - Excellent - Yes - $1.12 370
1,11/16 in - 1,23/32 in - 42.8mm - 43.8mm - 3/8in (9.0mm) - Black - EZY-P-43.3-PA66-BK - PA66 - Excellent - Yes - $1.17 169
1,49/64 in - 1,13/16 in - 45.0mm - 46.0mm - 3/8in (9.0mm) - Black - EZY-P-45.5-PA66-BK - PA66 - Excellent - Yes - $1.23 224

Description

Ezyclik-P sit within HCL’s range of Snap Fit Hose Clamps and offer a number of additional features along with the low profile head. These include a complete seal around the hose with no leak paths and being manufactured from a choice of materials to suit the clamping environment. Nylon is the standard material because it is has a high temperature rating and high strength but Polypropylene can also be chosen for more acidic environments. For very high temperatures we can also make the Ezyclik-P out of glass filled Nylon. In addition, if the volume requirement is large enough the Clamp can be made to a colour of your choice. Ezyclik-P are often very cost effective alternatives to Ear Clamps and Clic Clamps.

Product Specification Sheet

Download

Specification

Manufactured By HCL
HCL P/N EZY-P-X-PA66-BK
Series HCL Ezyclik
Corrosion Resistance Excellent
Hose Clamp Width in/mm 5/16 in (8.0mm)3/8 in (9.0mm)
Band Material Nylon 6.6 (PA66)
Max long Term Operating Temp 255°F - 125°C
Max Peak Operating Temp 340°F - 170°C
Flammability UL 94 V-2
Weathering & UV Very Good
Colour Black
Country of Manufacture United Kingdom
Tariff Code 3917 40 00 99
Hazardous Goods No
RoHS Compliant Yes

Space-Saving & Corrosion-Proof: HCL Snap Fit Low
Profile Polymer Hose Clamp - Black PA66 Nylon (8.5-45.5mm | 0.33-1.79 Inches)

Experience rapid, tool-free installation and exceptional
corrosion resistance in space-restricted areas with the HCL Snap Fit Low Profile Polymer Hose Clamp. Constructed from durable black PA66 Nylon, this
non-metallic clamp offers a lightweight yet robust, low-profile solution for a variety of applications. The unique snap-fit design allows for quick, one-handed installation and removal across a versatile size range of 8.5 to 45.5mm (0.33 to 1.79 Inches), while its low profile minimizes protrusion.

Why Choose the HCL Snap Fit Low Profile Polymer Hose Clamp?

  • Ultra-Fast Snap-Fit Installation: Simply push to engage and squeeze to release – no tools required for quick and easy application.
  • Low Profile Design: Ideal for applications with limited space or where minimal protrusion is desired.
  • Complete Non-Metallic PA66 Nylon Construction: Eliminates corrosion, rust, and electrolysis concerns, ideal for marine, chemical, and electrical applications.
  • Lightweight and Strong Polymer: Offers excellent strength and resilience without adding significant weight.
  • Self-Locking Design: Ensures a secure and reliable hold once engaged.
  • Compact Size Range: Accommodates hose and tube diameters from 8.5 to 45.5mm (0.33 to 1.79 Inches), perfect for smaller connections.
  • Non-Conductive Material: Provides electrical insulation, making it suitable for wiring and electrical applications.
  • Resistant to Many Chemicals: Offers good resistance to oils, fuels, and various chemicals.
  • Trusted HCL Quality: HCL is a reputable manufacturer known for producing high-performance fastening solutions.
  • UV Resistant: Carbon Black additive is added to the Nylon to enhance the Clips UV resistance

Perfect For:

  • Automotive Vacuum and Small Fluid Lines
  • Marine Plumbing and Electrical Wiring in Confined Spaces
  • Appliance Assembly in Tight Areas
  • Low-Profile Cable Management
  • Medical Equipment
  • Applications where space is at a premium and corrosion resistance is needed

Enjoy Effortless, Corrosion-Free Connections in Tight
Spaces:

The HCL Snap Fit Low Profile Polymer Hose Clamp offers the ultimate in convenience and corrosion resistance for space-constrained applications. Its innovative snap-fit design allows for incredibly fast,
tool-free installation, saving valuable time during assembly or maintenance in tight areas. The PA66 Nylon construction ensures complete immunity to rust,
corrosion, and electrolysis, making it ideal for demanding environments. The key advantage of this clamp is its low profile, minimizing bulk and potential
interference in confined spaces.

Key Features:

  • Material: Black PA66 Nylon Polymer
  • Type: Snap Fit (Quick Release), Low Profile Hose Clamp
  • Size Range: 8.5-45.5mm (0.33-1.79 Inches)
  • 100% Non-Metallic and Corrosion-Proof
  • Ultra-Fast, Install with manual pliers or HCL Pneumatic (Air Tools)
  • Lightweight and Strong
  • Low Profile Design for Space-Restricted Areas
  • Electrically Insulating
  • UV Resistant

For the ultimate in rapid, corrosion-free hose and tube
connections in tight spaces, choose the HCL Snap Fit Low Profile Polymer Hose Clamp. Browse our selection and experience the ease and space-saving benefits
of Herbie Clips today!
