Sale

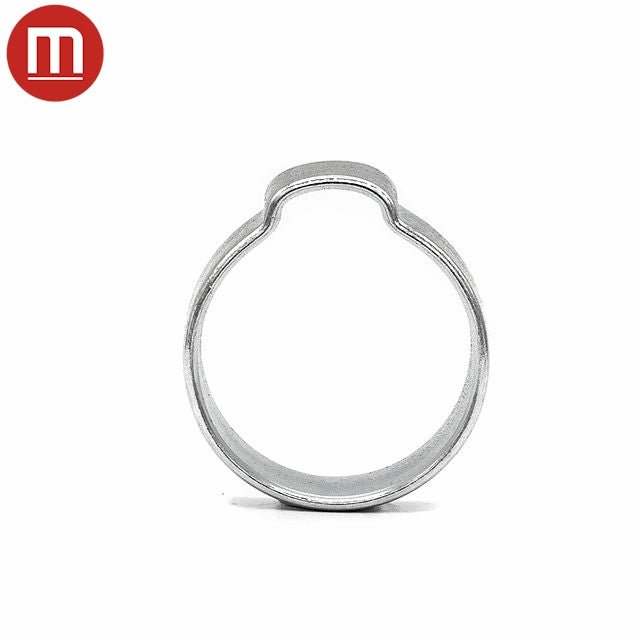

  • Single Ear Hose Clamp - 9-11mm - Zinc Plated Steel - HCL Clamping USA- SEC-9-W1
1 2

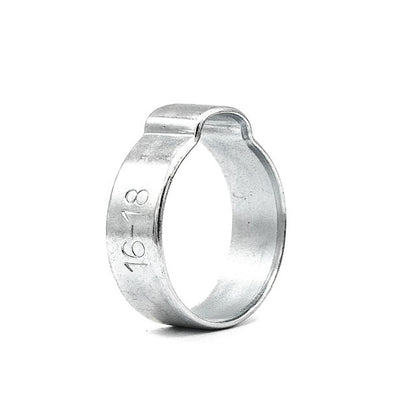

Mikalor Galvanized Single Pinch (Ear) Clamps - Cost-Effective Hose Connections

Mikalor Galvanized Single Pinch (Ear) Clamps - Cost-Effective Hose Connections

SEC-7-W1

$0.38
$0.38
Sale Sold out
Shipping calculated at checkout.

300 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Reusable ?

Reusable: Yes / No response If product can or cant be reused.

2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

9/32 in - 23/64 in - 0.28in - 0.35in - 7.0mm - 9.0mm - 03012080 - SEC-7-W1 - 15/64 in (6.0mm) - No - 2D PDF - 2D DXF - 3D STP - $0.38 300
5/16 in - 25/64 in - 0.31in - 0.39in - 8.0mm - 10.0mm - 03012072 - SEC-8-W1 - 15/64 in (6.0mm) - No - 2D PDF - 2D DXF - 3D STP - $0.41 1078
23/64 in - 7/16 in - 0.35in - 0.43in - 9.0mm - 11.0mm - 03012013 - SEC-9-W1 - 1/4 in (6.5mm) - No - 2D PDF - 2D DXF - 3D STP - $0.44 1085
25/64 in - 15/32 in - 0.39in - 0.47in - 10.0mm - 12.0mm - 03012021 - SEC-10-W1 - 9/32 in (7.0mm) - No - 2D PDF - 2D DXF - 3D STP - $0.47 462
7/16 in - 33/64 in - 0.43in - 0.51in - 11.0mm - 13.0mm - 03012030 - SEC-11-W1 - 19/64 in (7.5mm) - No - 2D PDF - 2D DXF - 3D STP - $0.53 236
15/32 in - 35/64 in - 0.47in - 0.55in - 12.0mm - 14.0mm - 03012048 - SEC-12-W1 - 5/16 in (8.0mm) - No - 2D PDF - 2D DXF - 3D STP - $0.62 418
35/64 in - 5/8 in - 0.55in - 0.63in - 14.0mm - 16.0mm - 03012056 - SEC-14-W1 - 21/64 in (8.5mm) - No - 2D PDF - 2D DXF - 3D STP - $0.70 469

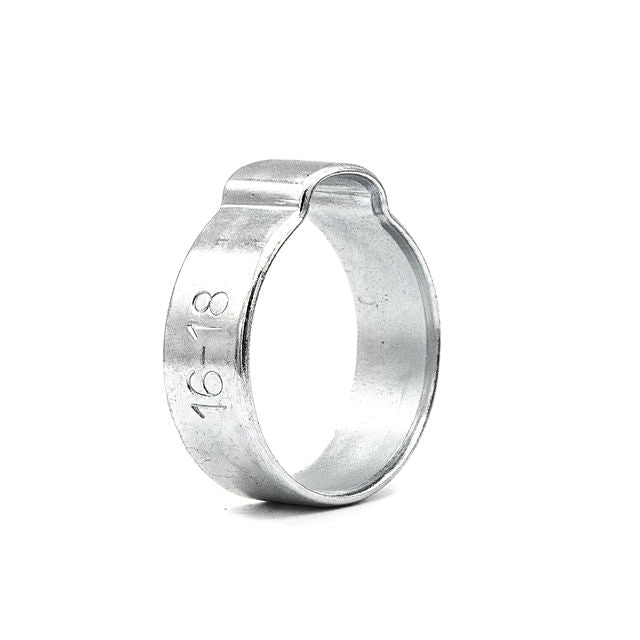

5/8 in - 45/64 in - 0.63in - 0.71in - 16.0mm - 18.0mm - 03012064 - SEC-16-W1 - 23/64 in (9.0mm) - No - 2D PDF - 2D DXF - 3D STP - $0.79 943

Description

The Single Ear Hose Clamp or Pinch clip is manufactured from Zinc Plated or 304 Stainless Steel by Mikalor and is an economical solution for many simple hose assemblies. The single ear hose clamp can be used with air or other fluids. These pinch clamps are ideal for demanding applications involving soft or hard rubbers and plastics. The design also ensures a uniform compression around the whole circumference of the hose clamp.

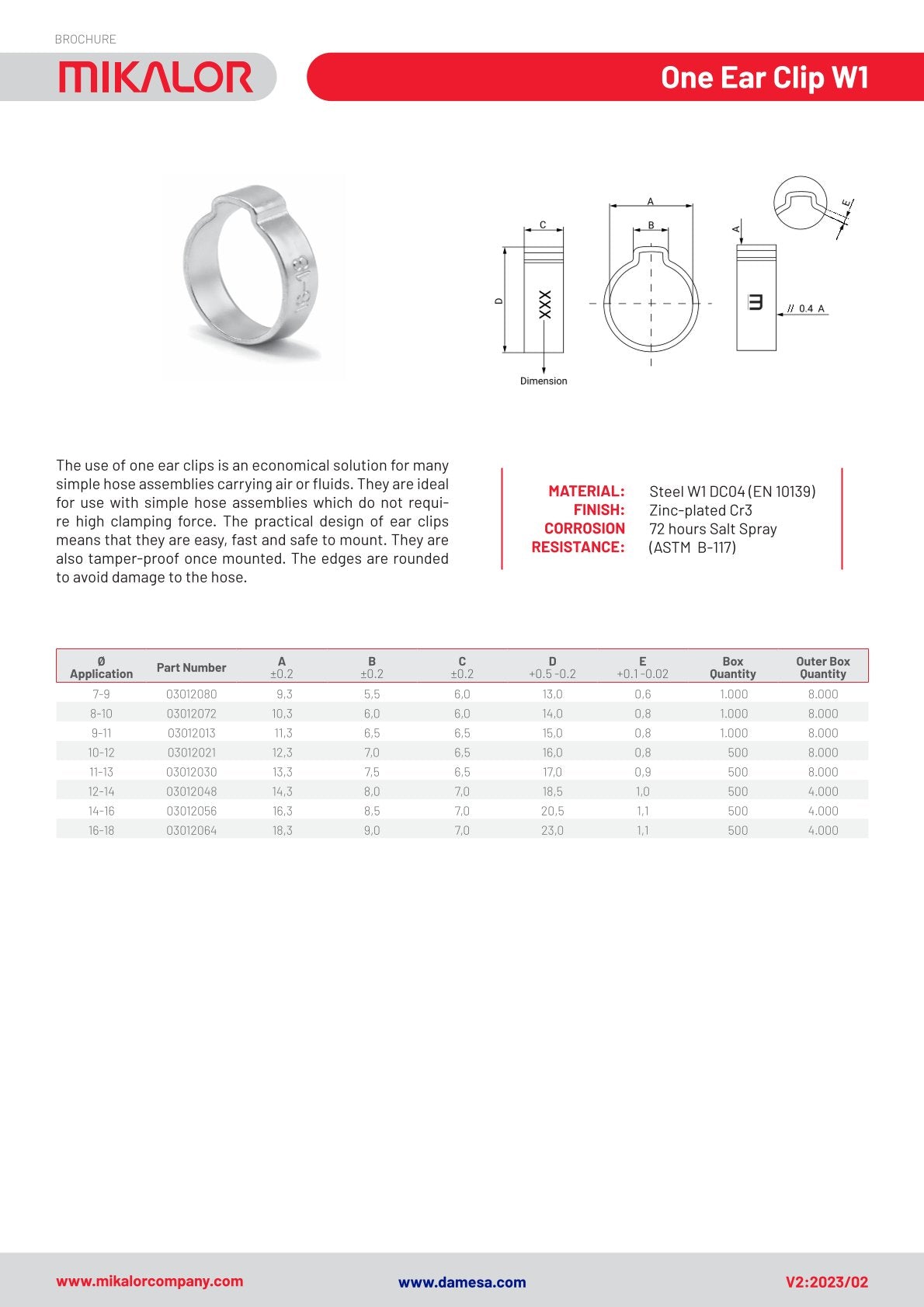

Product Specification Sheet

Download

Specification

Manufactured By Mikalor
HCL P/N SEC-X-W1
Series Single Ear
Corrosion Resistance Fair
Corrosion Specification 72 hours Salt Spray (ASTM B-117)
Band Material Zinc Plated Steel
Finish Galvanised Steel
Colour Silver
Country of Manufacture Spain
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Secure Hoses Affordably: Mikalor Single Ear Pinch Hose Clamps (Galvanized) - Reliable, Cost-Effective Connections! Ensure dependable hose connections without breaking the bank with Mikalor Single Ear Pinch Hose Clamps, crafted from durable galvanized
steel. Engineered for secure grip and corrosion resistance in general applications, these clamps provide a strong and reliable seal.

Why Choose Mikalor Single Ear Pinch Hose Clamps (Galvanized)?

  • Cost-Effective Galvanized Steel: Provides a budget-friendly solution with reliable corrosion resistance for everyday applications.
  • Single Ear Pinch Design for Secure Grip: Delivers a strong and consistent clamping force, preventing hose slippage and ensuring a tight seal.
  • Reliable Performance in General Applications: Ideal for various applications where cost-effectiveness and dependable performance are key.
  • Easy and Efficient Installation: Simple installation with standard ear pinch tools, allowing for quick and secure hose connections.
  • Durable for Everyday Use: Designed to withstand typical operating conditions, providing reliable performance over time.
  • Wide Range of Sizes for Versatility: Available in a comprehensive range of sizes to accommodate various hose diameters.

Perfect For:

  • General-Purpose Hose Connections
  • Light Industrial Applications
  • Automotive Applications (Non-Critical Systems)
  • Agricultural Applications
  • DIY Projects and Home Repairs

Invest in reliable, budget-friendly hose connections. Invest in Mikalor Single Ear Pinch Hose Clamps Galvanized). Browse our extensive selection of sizes and order yours today!
