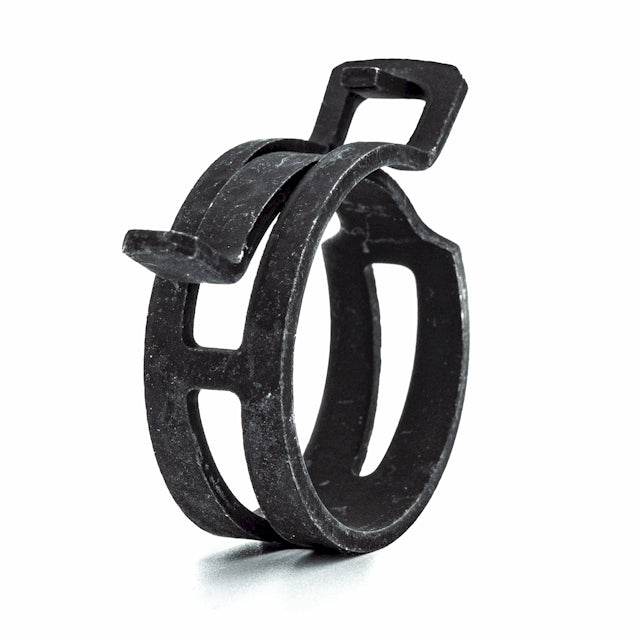

Mubea | Constant Pressure Spring Band Hose Clamps | 19/32" Band Width | Spring Steel

Mubea | Constant Pressure Spring Band Hose Clamps | 19/32" Band Width | Spring Steel

MUB-15-CTB-14

$0.46
$0.00 $0.46
Sale Sold out
Shipping calculated at checkout.

4031 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

34/64 in - 40/64 in - 0.52in - 0.62in - 13.3mm-15.8mm - 9/16 in (15.0mm) - MUB-15-CTB-14 - 1401500800 - Fair - $0.46 4031
35/64 in - 42/64 in - 0.55in - 0.65in - 13.9mm-16.5mm - 9/16 in (15.0mm) - MUB-15-CTB-15 - 1501500800 - Fair - $0.47 2365
38/64 in - 44/64 in - 0.59in - 0.69in - 14.9mm-17.5mm - 9/16 in (15.0mm) - MUB-15-CTB-16 - 1601500800 - Fair - $0.48 1955
38/64 in - 47/64 in - 0.60in - 0.73in - 15.2mm-18.5mm - 9/16 in (15.0mm) - MUB-15-CTB-17 - 17015C0800 - Fair - $0.50 1872
40/64 in - 48/64 in - 0.63in - 0.75in - 16.0mm-19.0mm - 9/16 in (15.0mm) - MUB-15-CTB-18 - 1801500800 - Fair - $0.54 1321
45/64 in - 51/64 in - 0.70in - 0.80in - 17.8mm-20.2mm - 9/16 in (15.0mm) - MUB-15-CTB-19 - 1901500800 - Fair - $0.60 9622
46/64 in - 54/64 in - 0.72in - 0.85in - 18.4mm-21.6mm - 9/16 in (15.0mm) - MUB-15-CTB-20 - 2001500800 - Fair - $0.62 2265
52/64 in - 61/64 in - 0.81in - 0.95in - 20.5mm-24.2mm - 9/16 in (15.0mm) - MUB-15-CTB-22 - 2201500800 - Fair - $0.64 1324
53/64 in - 62/64 in - 0.83in - 0.97in - 21.0mm-24.7mm - 9/16 in (15.0mm) - MUB-15-CTB-23 - 2301500800 - Fair - $0.66 717
55/64 in - 66/64 in - 0.86in -1.03in - 22.0mm-26.0mm - 9/16 in (15.0mm) - MUB-15-CTB-24 - 240150800 - Fair - $0.66 0
59/64 in - 68/64 in - 0.93in - 1.06in - 23.5mm-26.8mm - 9/16 in (15.0mm) - MUB-15-CTB-25 - 2515008000 - Fair - $0.78 1884
61/64 in - 71/64 in - 0.96in - 1.10in - 24.3mm-28.0mm - 9/16 in (15.0mm) - MUB-15-CTB-26 - 2601500800 - Fair - $0.80 117
63/64 in - 74/64 in - 0.99in - 1.15in - 25.2mm-29.2mm - 9/16 in (15.0mm) - MUB-15-CTB-27 - 2701500800 - Fair - $0.82 1033
68/64 in - 79/64 in - 1.06in - 1.24in - 27.0mm-31.5mm - 9/16 in (15.0mm) - MUB-15-CTB-29 - 2901500800 - Fair - $0.89 180
71/64 in - 82/64 in - 1.10in - 1.28in - 28.0mm-32.5mm - 9/16 in (15.0mm) - MUB-15-CTB-30 - 3001500800 - Fair - $0.91 388
74/64 in - 87/64 in - 1.15in - 1.36in - 29.3mm-34.5mm - 9/16 in (15.0mm) - MUB-15-CTB-32 - 3201500800 - Fair - $0.96 636
77/64 in - 92/64 in - 1.20in - 1.43in - 30.6mm-36.4mm - 9/16 in (15.0mm) - MUB-15-CTB-34 - 3401500800 - Fair - $1.00 510
79/64 in - 96/64 in - 1.24in - 1.50in - 31.5mm-38.0mm - 9/16 in (15.0mm) - MUB-15-CTB-35 - 3501200800 - Fair - $1.02 724
82/64 in - 98/64 in - 1.28in - 1.54in - 32.5mm-39.0mm - 9/16 in (15.0mm) - MUB-15-CTB-36 - 3601500800 - Fair - $1.04 565
87/64 in - 105/64 in - 1.36in - 1.63in - 34.5mm-41.5mm - 9/16 in (15.0mm) - MUB-15-CTB-38 - 38015M0800 - Fair - $1.09 472
89/64 in - 107/64 in - 1.40in - 1.67in - 35.5mm-42.5mm - 9/16 in (15.0mm) - MUB-15-CTB-40 - 4001500800 - Fair - $1.18 545
91/64 in - 110/64 in - 1.43in - 1.71in - 36.3mm-43.5mm - 9/16 in (15.0mm) - MUB-15-CTB-41 - 4101500800 - Fair - $1.50 424
94/64 in - 112/64 in - 1.46in - 1.75in - 37.2mm-44.5mm - 9/16 in (15.0mm) - MUB-15-CTB-42 - 4201500800 - Fair - $1.42 479
95/64 in - 115/64 in - 1.49in - 1.79in - 37.9mm-45.5mm - 9/16 in (15.0mm) - MUB-15-CTB-43 - 4301500800 - Fair - $1.44 480
97/64 in - 117/64 in - 1.52in - 1.83in - 38.5mm-46.5mm - 9/16 in (15.0mm) - MUB-15-CTB-44 - 4401500800 - Fair - $1.46 466
102/64 in - 122/64 in - 1.59in - 1.91in - 40.5mm-48.5mm - 9/16 in (15.0mm) - MUB-15-CTB-46 - 4601500800 - Fair - $1.58 412
104/64 in - 126/64 in - 1.63in - 1.97in - 41.4mm-50.0mm - 9/16 in (15.0mm) - MUB-15-CTB-47 - 4701500800 - Fair - $1.62 365
107/64 in - 131/64 in - 1.67in - 2.05in - 42.5mm-52.0mm - 9/16 in (15.0mm) - MUB-15-CTB-49 - 4901500800 - Fair - $1.77 340
110/64 in - 134/64 in - 1.71in - 2.09in - 43.5mm-53.0mm - 9/16 in (15.0mm) - MUB-15-CTB-50 - 5001500800 - Fair - $1.79 324
111/64 in - 136/64 in - 1.73in - 2.13in - 44.0mm-54.0mm - 9/16 in (15.0mm) - MUB-15-CTB-51 - 5101500800 - Fair - $1.83 293
116/64 in - 141/64 in - 1.81in - 2.20in - 46.0mm-55.8mm - 9/16 in (15.0mm) - MUB-15-CTB-53 - 5301500800 - Fair - $1.87 507
117/64 in - 142/64 in - 1.82in - 2.22in - 46.3mm-56.5mm - 9/16 in (15.0mm) - MUB-15-CTB-54 - 5401500800 - Fair - $2.05 265
118/64 in - 146/64 in - 1.84in - 2.28in - 46.8mm-58.0mm - 9/16 in (15.0mm) - MUB-15-CTB-55 - 5501500800 - Fair - $2.10 313
126/64 in - 154/64 in - 1.97in - 2.40in - 50.0mm-61.0mm - 9/16 in (15.0mm) - MUB-15-CTB-58 - 5801500800 - Fair - $2.15 215

Description

Mubea Adaptive Spring Band Clamps are premium, constant-tension fasteners specifically engineered for fluid systems experiencing thermal cycling and high vibration, such as automotive engine bays. The core function of this Spring Steel clamp is to continuously adjust its diameter to maintain absolute sealing pressure, countering both hose expansion due to heat and material 'cold flow,' thereby guaranteeing a permanent, leak-proof, and zero-maintenance connection with a wide - 19/32 in. contact surface.

Specification

Manufactured By Mubea
HCL P/N MUB-15BK-CTB-X
Series CTB Spring Band
Corrosion Resistance Fair
Corrosion Specification >480 Hrs Salt Spray Protection ASTM B117
Hose Clamp Width in/mm 9/16 in (15.0mm)
Band Material Spring Steel
Finish Magni 511 Finish Zinc Plate Rich
Colour Silver
For use with Car Radiator Hoses and similar applications
Country of Manufacture USA
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Mubea Adaptive Spring Band Clamps | - 19/32 in. Band Width | Thermally Reactive Spring Steel

Mubea Adaptive Spring Band Clamps deliver critical sealing reliability by actively compensating for temperature-driven hose expansion and material shrinkage (cold flow). Featuring an expanded - 19/32 in. band width and crafted from highly elastic Spring Steel, these clamps ensure continuous, consistent contact pressure across the entire hose life cycle, eliminating common points of failure in dynamic systems.

Key Features of Mubea Adaptive Spring Band Clamps:

  • Thermally Reactive Sealing: The core benefit is the ability to exert constant, adaptable clamping force. The spring steel reacts to thermal cycles by contracting and expanding with the hose, preventing leaks during both engine heating and cooling cycles.
  • Enhanced Force Distribution: The substantial - 19/32 in. band width (- 15,08 mm) provides a wider footprint for radial load, making it highly effective on soft or braided hoses by minimizing material pinch and ensuring a uniform, deep seal.
  • Superior Spring Steel Alloy: Built from a specialized Spring Steel formulation to offer extreme durability, fatigue resistance, and predictable elastic deformation, making them ideal for high-cycle, critical connections.
  • Zero-Maintenance Design: Once installed with a pincer tool, the clamps require no retightening or ongoing adjustment, providing a permanent, hands-off solution against pressure loss.
  • OEM-Grade Performance: Widely used in modern vehicle manufacturing due to their superior performance in preventing premature hose failure and minimizing emissions from fluid leaks.

Perfect For:

Engine Compartment Connections: Coolant, oil, and heater lines exposed to severe temperature fluctuations.

Vibration-Prone Systems: Heavy equipment and industrial machinery where dynamic movement challenges hose integrity.

Sensitive Fluid Systems: Any application where hose shrinkage or cold flow risk jeopardizes sealing performance.
