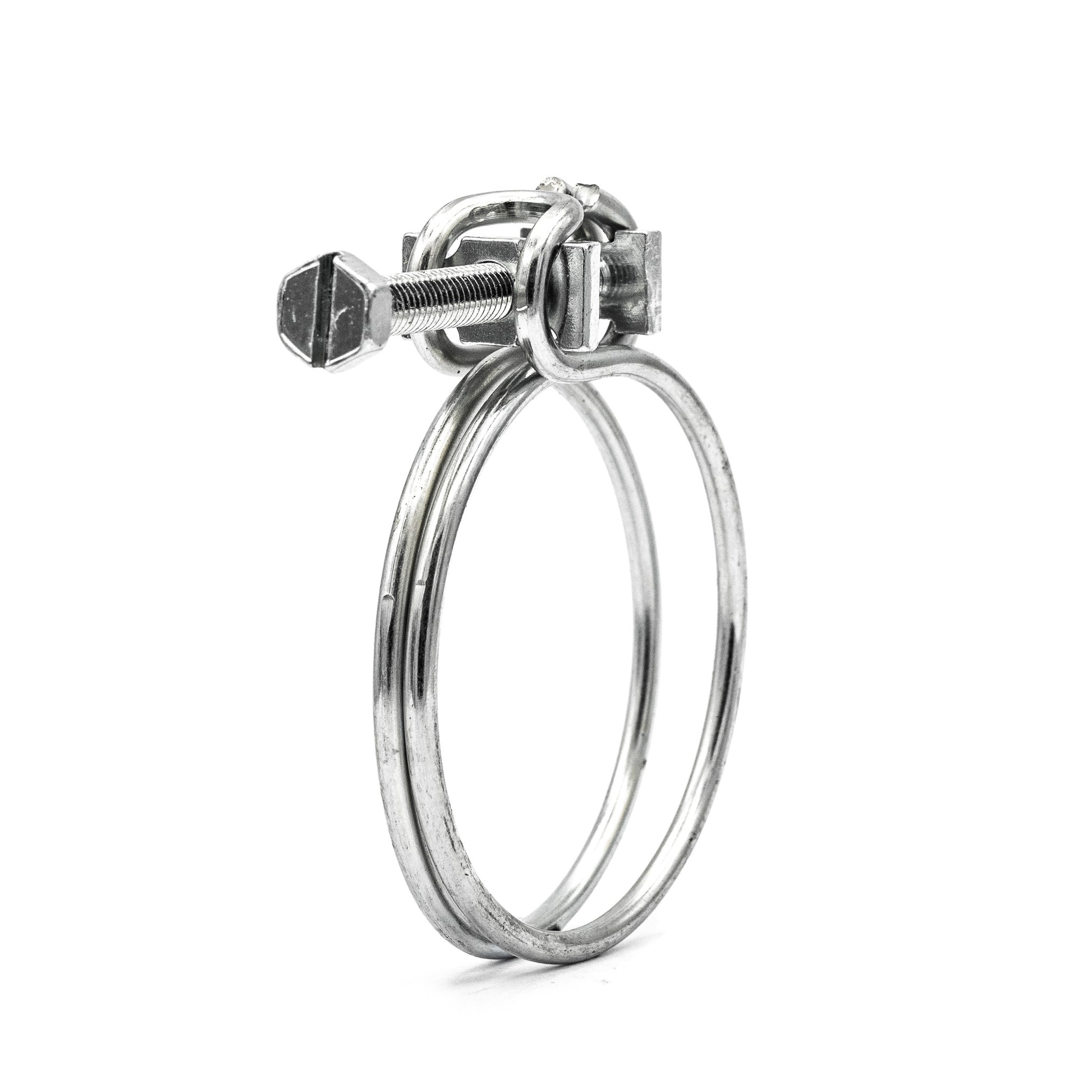

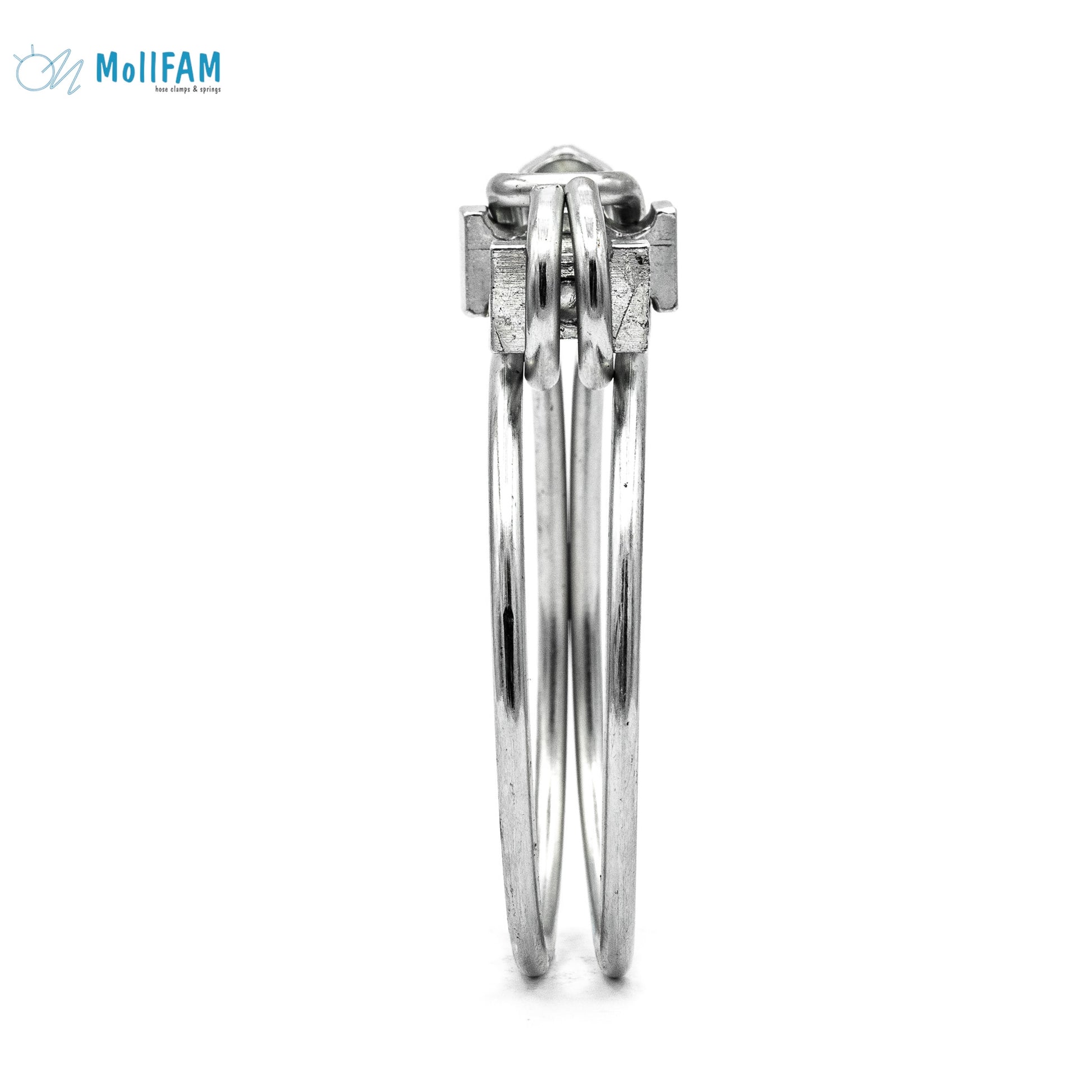

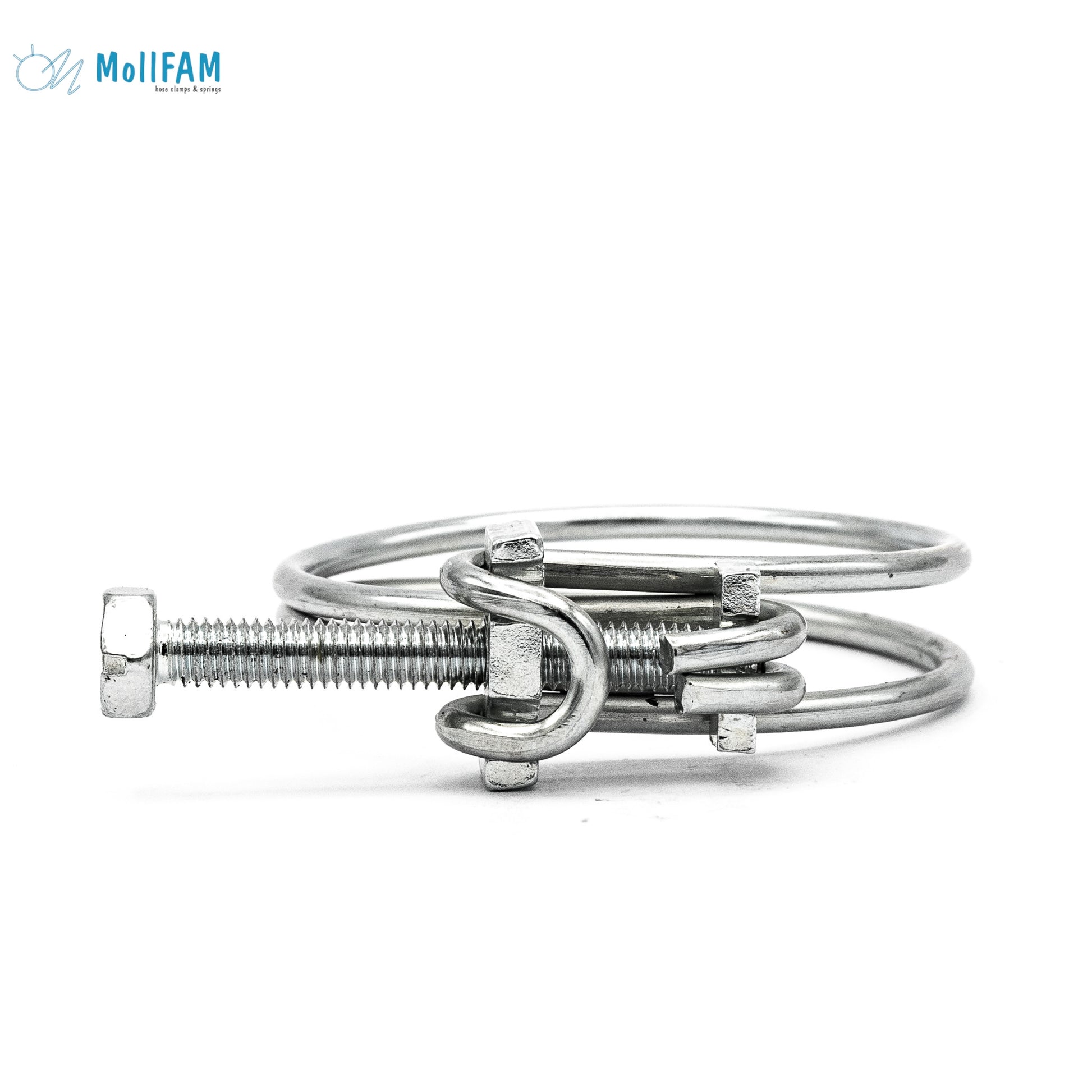

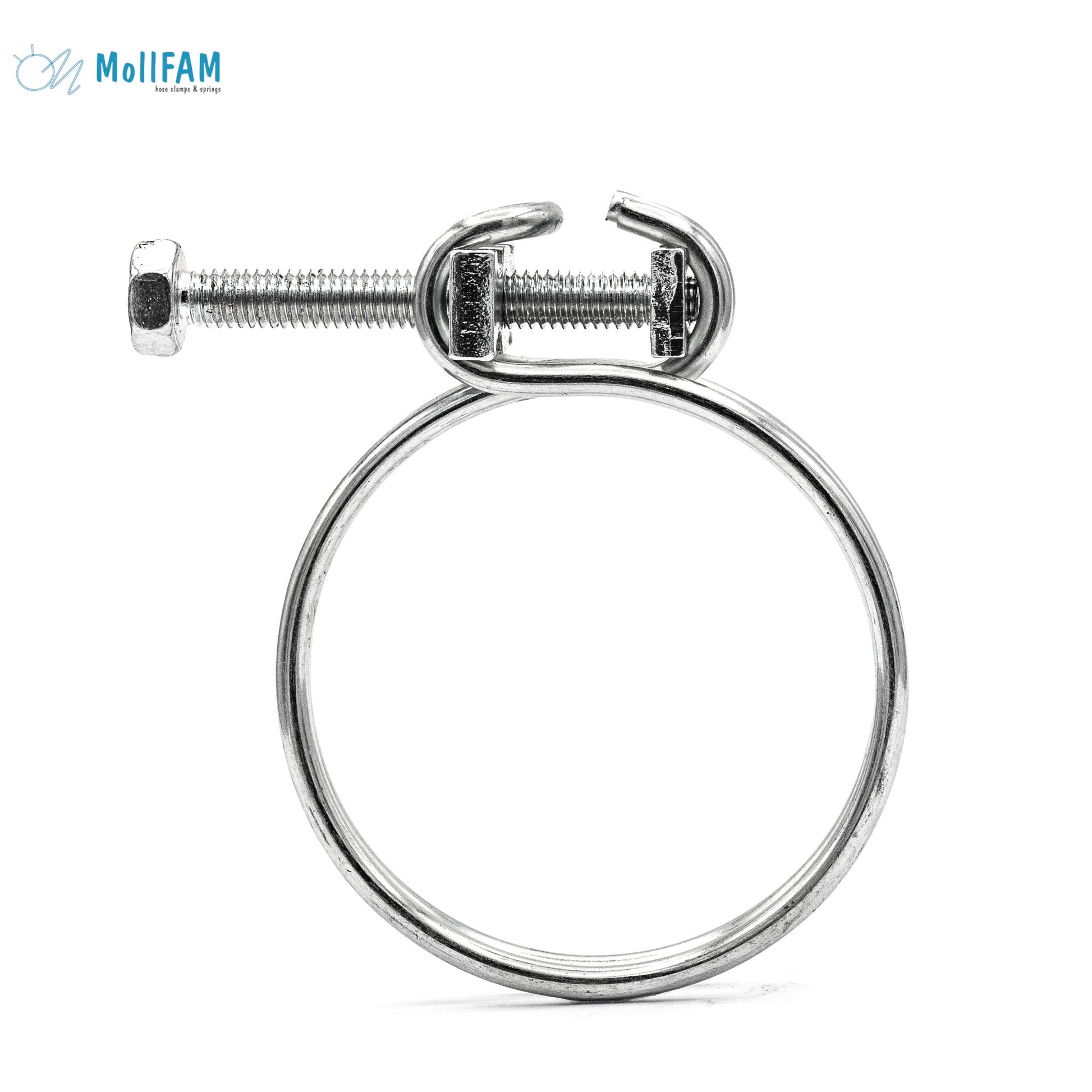

Double Wire Screw Hose Clamp - Galvanised Steel Clips for Spiral Hose

Double Wire Screw Hose Clamp - Galvanised Steel Clips for Spiral Hose

DWS-012

$0.46
$0.46
Sale Sold out
Shipping calculated at checkout.

932 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Screw Size ?

Screw Size: Refers to the standard dimensions of a screw, typically including its diameter and length, used to ensure proper fit and application.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Material ?

Material: The core substance used to manufacture the product (e.g., steel, plastic, rubber). Affects durability and performance.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

3/8 in - 15/32 in - 0.37in - 0.47in - 9.5mm - 12.0mm - 7/16 in (11.3mm) - 3/16 in (5.5mm) A/F (M3) - DWS-012 - FV12 - Galvanised Steel (W1) - Fair - $0.46 932
13/32 in - 33/64 in - 0.41in - 0.51in - 10.5mm - 13.0mm - 7/16 in (11.3mm) - 3/16 in (5.5mm) A/F (M3) - DWS-013 - FV13 - Galvanised Steel (W1) - Fair - $0.47 1456
29/64 in - 35/64 in - 0.45in - 0.55in - 11.5mm - 14.0mm - 7/16 in (11.3mm) - 3/16 in (5.5mm) A/F (M3) - DWS-014 - FV14 - Galvanised Steel (W1) - Fair - $0.48 156
31/64 in - 19/32 in - 0.49in - 0.59in - 12.5mm - 15.0mm - 7/16 in (11.3mm) - 3/16 in (5.5mm) A/F (M3) - DWS-015 - FV15 - Galvanised Steel (W1) - Fair - $0.49 0
33/64 in - 5/8 in - 0.51in - 0.63in - 13.0mm - 16.0mm - 7/16 in (11.3mm) - 3/16 in (5.5mm) A/F (M3) - DWS-016 - FV16 - Galvanised Steel (W1) - Fair - $0.51 121
9/16 in - 43/64 in - 0.53in - 0.67in - 13.5mm - 17.0mm - 7/16 in (11.3mm) - 3/16 in (5.5mm) A/F (M3) - DWS-017 - FV17 - Galvanised Steel (W1) - Fair - $0.87 188
19/32 in - 45/64 in - 0.59in - 0.71in - 15.0mm - 18.0mm - 7/16 in (11.3mm) - 3/16 in (5.5mm) A/F (M3) - DWS-018 - FV18 - Galvanised Steel (W1) - Fair - $0.53 222
39/64 in - 3/4 in - 0.61in - 0.75in - 15.5mm - 19.0mm - 7/16 in (11.3mm) - 3/16 in (5.5mm) A/F (M3) - DWS-019 - FV19 - Galvanised Steel (W1) - Fair - $0.55 0
43/64 in - 25/32 in - 0.67in - 0.79in - 17.0mm - 20.0mm - 7/16 in (11.3mm) - 3/16 in (5.5mm) A/F (M3) - DWS-020 - FV20 - Galvanised Steel (W1) - Fair - $0.56 1090
11/16 in - 53/64 in - 0.69in - 0.83in - 17.5mm - 21.0mm - 7/16 in (11.3mm) - 3/16 in (5.5mm) A/F (M3) - DWS-021 - FV21 - Galvanised Steel (W1) - Fair - $0.57 486
47/64 in - 55/64 in - 0.73in - 0.87in - 18.5mm - 22.0mm - 9/16 in (14.3mm) - 1/4 in (7.0mm) A/F (M4) - DWS-022 - FV22 - Galvanised Steel (W1) - Fair - $0.59 53
3/4 in - 29/32 in - 0.75in - 0.91in - 19.0mm - 23.0mm - 9/16 in (14.3mm) - 1/4 in (7.0mm) A/F (M4) - DWS-023 - FV23 - Galvanised Steel (W1) - Fair - $0.60 1025
27/32 in - 63/64 in - 0.85in - 0.98in - 21.5mm - 25.0mm - 9/16 in (14.3mm) - 1/4 in (7.0mm) A/F (M4) - DWS-025 - FV25 - Galvanised Steel (W1) - Fair - $0.61 364
59/64 in - 1,1/16 in - 0.93in - 1.06in - 23.5mm - 27.0mm - 9/16 in (14.3mm) - 1/4 in (7.0mm) A/F (M4) - DWS-027 - FV27 - Galvanised Steel (W1) - Fair - $0.62 1417
1 in - 1,1/8 in - 0.98in - 1.14in - 25.0mm - 29.0mm - 9/16 in (14.3mm) - 1/4 in (7.0mm) A/F (M4) - DWS-029 - FV29 - Galvanised Steel (W1) - Fair - $0.64 272
1,1/16 in - 1,1/4 in - 1.06in - 1.22in - 27.0mm - 31.0mm - 9/16 in (14.3mm) - 1/4 in (7.0mm) A/F (M4) - DWS-031 - FCV31 - Galvanised Steel (W1) - Fair - $0.65 712
1,1/8 in - 1,5/16 in - 1.14in - 1.30in - 29.0mm - 33.0mm - 9/16 in (14.3mm) - 1/4 in (7.0mm) A/F (M4) - DWS-033 - FV33 - Galvanised Steel (W1) - Fair - $0.66 1842
1,3/16 in - 1,3/8 in - 1.20in - 1.38in - 30.5mm - 35.0mm - 9/16 in (14.3mm) - 1/4 in (7.0mm) A/F (M4) - DWS-035 - FV35 - Galvanised Steel (W1) - Fair - $0.68 164
1,5/16 in - 1,7/16 in - 1.30in - 1.46in - 33.0mm - 37.0mm - 9/16 in (14.3mm) - 1/4 in (7.0mm) A/F (M4) - DWS-037 - FV37 - Galvanised Steel (W1) - Fair - $0.69 455
1,3/8 in - 1,9/16 in - 1.40in - 1.57in - 35.5mm - 40.0mm - 9/16 in (14.3mm) - 1/4 in (7.0mm) A/F (M4) - DWS-040 - FV40 - Galvanised Steel (W1) - Fair - $1.33 6536
1,1/2 in - 1,11/16 in - 1.52in - 1.69in - 38.5mm - 43.0mm - 9/16 in (14.3mm) - 1/4 in (7.0mm) A/F (M4) - DWS-043 - FV43 - Galvanised Steel (W1) - Fair - $0.72 3526
1,5/8 in - 1,13/16 in - 1.61in - 1.81in - 41.0mm - 46.0mm - 5/8 in (15.3mm) - 5/16 in (8.0mm) A/F M5 - DWS-046 - FV46 - Galvanised Steel (W1) - Fair - $1.39 43703
1,11/16 in - 1,15/16 in - 1.71in - 1.93in - 43.5mm - 49.0mm - 5/8 in (15.3mm) - 5/16 in (8.0mm) A/F M5 - DWS-049 - FCV49 - Galvanised Steel (W1) - Fair - $1.42 196
1,13/16 in - 2,1/16 in - 1.83in - 2.09in - 46.5mm - 53.0mm - 5/8 in (15.3mm) - 5/16 in (8.0mm) A/F M5 - DWS-053 - FV53 - Galvanised Steel (W1) - Fair - $1.44 415
2 in - 2,3/16 in - 1.99in - 2.20in - 50.5mm - 56.0mm - 5/8 in (15.3mm) - 5/16 in (8.0mm) A/F M5 - DWS-056 - FCV56 - Galvanised Steel (W1) - Fair - $0.92 403
2,1/8 in - 2,3/8 in - 2.11in - 2.36in - 53.5mm - 60.0mm - 5/8 in (15.3mm) - 5/16 in (8.0mm) A/F M5 - DWS-060 - FV60 - Galvanised Steel (W1) - Fair - $0.95 401
2,1/4 in - 2,1/2 in - 2.22in - 2.52in - 56.5mm - 64.0mm - 5/8 in (15.3mm) - 5/16 in (8.0mm) A/F M5 - DWS-064 - FV64 - Galvanised Steel (W1) - Fair - $3.13 202
2,3/8 in - 2,11/16 in - 2.36in - 2.68in - 60.0mm - 68.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-068 - FV68 - Galvanised Steel (W1) - Fair - $3.16 240
2,1/2 in - 2,13/16 in - 2.52in - 2.83in - 64.0mm - 72.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-072 - FV72 - Galvanised Steel (W1) - Fair - $3.19 176
2,11/16 in - 3 in - 2.70in - 2.99in - 68.5mm - 76.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-076 - FV76 - Galvanised Steel (W1) - Fair - $3.21 100
2,7/8 in - 3,1/8 in - 2.85in - 3.15in - 72.5mm - 80.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-080 - FV80 - Galvanised Steel (W1) - Fair - $2.12 41
3 in - 3,5/16 in - 3.01in - 3.31in - 76.5mm - 84.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-084 - FV84 - Galvanised Steel (W1) - Fair - $2.13 207
3,1/8-3,7/16 in - 3.15in - 3.46in - 80.0mm - 88.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-088 - FV88 - Galvanised Steel (W1) - Fair - $2.15 85
3,5/16 in - 3,5/8 in - 3.31in - 3.62in - 84.0mm - 92.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-092 - FV92 - Galvanised Steel (W1) - Fair - $2.17 71
3,7/16 in - 3,3/4 in - 3.46in - 3.78in - 88.0mm - 96.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-096 - FV96 - Galvanised Steel (W1) - Fair - $3.35 28
3,5/8 in - 3,15/16 in - 3.62in - 3.94in - 92.0mm - 100.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-100 - FV100 - Galvanised Steel (W1) - Fair - $3.38 0
3,3/4 in - 4,1/8 in - 3.74in - 4.09in - 95.0mm - 104.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-104 - FV104 - Galvanised Steel (W1) - Fair - $3.41 0
3,7/8 in - 4,1/4 in - 3.86in - 4.25in - 98.0mm - 108.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-108 - FV108 - Galvanised Steel (W1) - Fair - $3.43 135
4,1/16 in - 4,7/16 in - 4.06in - 4.41in - 103.0mm - 112.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-112 - FV112 - Galvanised Steel (W1) - Fair - $3.46 0
4,5/16 in - 4,9/16 in - 4.29in - 4.57in - 109.0mm - 116.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-116 - FV116 - Galvanised Steel (W1) - Fair - $2.25 0
4,3/8 in - 4,3/4 in - 4.37in - 4.72in - 111.0mm - 120.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-120 - FV120 - Galvanised Steel (W1) - Fair - $3.51 0
4,1/2 in - 4,7/8 in - 4.53in - 4.88in - 115.0mm - 124.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-124 - FV124 - Galvanised Steel (W1) - Fair - $3.54 0
4,5/8 in - 5,1/16 in - 4.61in - 5.04in - 117.0mm - 128.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-128 - FV128 - Galvanised Steel (W1) - Fair - $2.29 0
4,7/8 in - 5,3/16 in - 4.88in - 5.20in - 124.0mm - 132.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-132 - FV132 - Galvanised Steel (W1) - Fair - $4.09 0
4,15/16 in - 5,1/2 in - 4.92in - 5.51in - 125.0mm - 140.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-140 - FV140 - Galvanised Steel (W1) - Fair - $4.22 0
5,5/16 in - 5,7/8 in - 5.31in - 5.91in - 135.0mm - 150.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-150 - FV150 - Galvanised Steel (W1) - Fair - $4.36 0
5,11/16 in - 6,5/16 in - 5.71in - 6.30in - 145.0mm - 160.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-160 - FV160 - Galvanised Steel (W1) - Fair - $4.63 0
5,7/8 in - 6,1/2 in - 5.91in - 6.50in - 150.0mm - 165.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-165 - FV165 - Galvanised Steel (W1) - Fair - $4.90 0
6,1/8 in - 6,11/16 in - 6.10in - 6.69in - 155.0mm - 170.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-170 - FV170 - Galvanised Steel (W1) - Fair - $5.18 0
6,1/2 in - 7,1/16 in - 6.50in - 7.09in - 165.0mm - 180.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-180 - FV180 - Galvanised Steel (W1) - Fair - $5.45 0
6,7/8 in - 7,1/2 in - - 175.0mm - 190.0mm - 11/16in (17.5mm) - 3/8 in (10.0mm) A/F M6 - DWS-190 - FV190 - Galvanised Steel (W1) - Fair - $5.46 0

Description

Double Wire Screw Hose Clips are galvanised double wire hose clamps with a screw that are highly suited to soft and semi-rigid hoses, with spiral or braided reinforcement, as well as aluminium foil ducting. The are manufactured from High Quality Zinc Plated Steel.

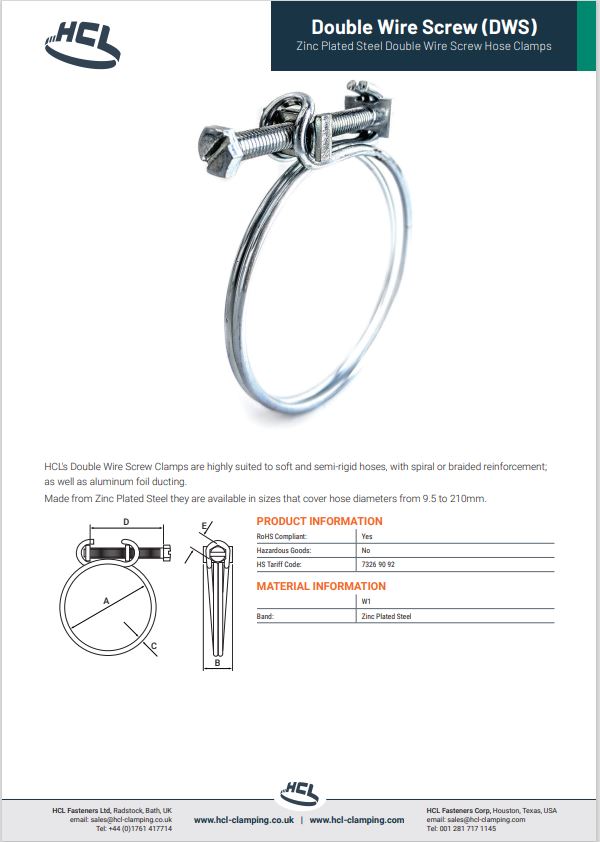

Product Specification Sheet

Download

Specification

Manufactured By Mollfam
HCL P/N DWS-X
Series DWS
Corrosion Resistance Fair
Corrosion Specification 48 Hours - UNI ISO 9227
Hose Clamp Width in/mm 7/16 in (11.0mm)9/16 in (14.0mm)5/8 in (16.0mm)11/16 in (17.0mm)
Band Material Zinc Plated Steel
Bolt/Screw Type Slotted Hex
Bolt/Screw Material Zinc Plated Steel
Screw Type/Size ["3/16 in (5.5mm) A/F - M3","1/4 in (7.0mm) A/F - M4","5/16 in (8.0mm) A/F - M5","3/8 in (9.0mm) A/F - M6"]
Colour Silver
Country of Manufacture Italy
Tariff Code 7326.9
Hazardous Goods No
RoHS Compliant Yes

Extra Secure & Adjustable Sealing: Mollfam Double Wire Screw Hose Clamp - Galvanised Steel (10.5 210.0mm | 0.41-8.26 Inches)

Ensure exceptionally secure and easily adjustable hose connections with the Mollfam Double Wire Screw Hose Clamp. Constructed from durable galvanised steel, this clamp features a unique double wire design
combined with a screw tightening mechanism. This provides powerful and consistent radial force around Spiral Hoses, offering superior sealing capabilities and the ability to fine-tune the clamping pressure across a versatile size range of 10.5 to 210.0mm (0.41 to 8.26 Inches).

Why Choose the Mollfam Double Wire Screw Hose Clamp?

Superior Sealing Power for Spiral Hose: The double wire design exerts consistent and even radial force, providing a tighter and more reliable seal compared to single wire or traditional worm gear clamps.

Enhanced Vibration Resistance: The robust spring action inherent in the double wire construction, combined with the screw tightening, effectively resists loosening due to vibration, pressure surges, and thermal cycling.

Durable Galvanised Steel: Offers good strength and corrosion resistance for a variety of applications.

Wide Adjustable Size Range: Covers diameters from 10.5 to 210.0mm (0.41 to 8.26 Inches), suitable for numerous hose and tubing applications, including larger sizes.

Screw Adjustment for Precise Tension: Allows for fine-tuning of the clamping pressure to achieve the optimal seal for different hose materials and pressures.

Secure and Reusable: Provides a strong and dependable connection that can be easily adjusted or removed and reused as needed.

Ideal for Demanding Applications: The extra security provided by the double wire and the adjustability of the screw make it suitable for more challenging environments.

Perfect For:

Automotive Fuel Lines and Larger Hoses

Spiral Hoses

Vacuum Lines

Agricultural Equipment

Industrial Machinery

Applications requiring a very secure, adjustable, and vibration-resistant seal

Experience Unmatched Sealing Security with Precise Adjustment:

The Mollfam Double Wire Screw Hose Clamp is engineered to provide the highest level of sealing security with the added benefit of adjustable tension. The innovative double wire design delivers a powerful and consistent radial force, ensuring a tight and leak-free connection even under demanding conditions. The screw tightening mechanism allows for precise
adjustment of the clamping pressure, making it adaptable to various hose materials and operating pressures. This clamp offers exceptional resistance to
leaks and loosening, with the added versatility of screw-based adjustment.

Key Features:

Material: Galvanised Steel (Double Wire Spring with Screw Mechanism)

Type: Double Wire Hose Clamp with Screw Adjustment

Size Range: 10.5-210.0mm (0.41-8.26 Inches)

Superior Sealing Power due to Double Wire Design

Enhanced Vibration Resistance

Adjustable Tension with Screw Mechanism for Precise Sealing

Secure and Reusable Connections

For the ultimate in secure, adjustable, and reliable hose connections, choose the Mollfam Double Wire Screw Hose Clamp. Ensure leak-free performance and resistance to loosening in a wide range of applications – order yours today!
