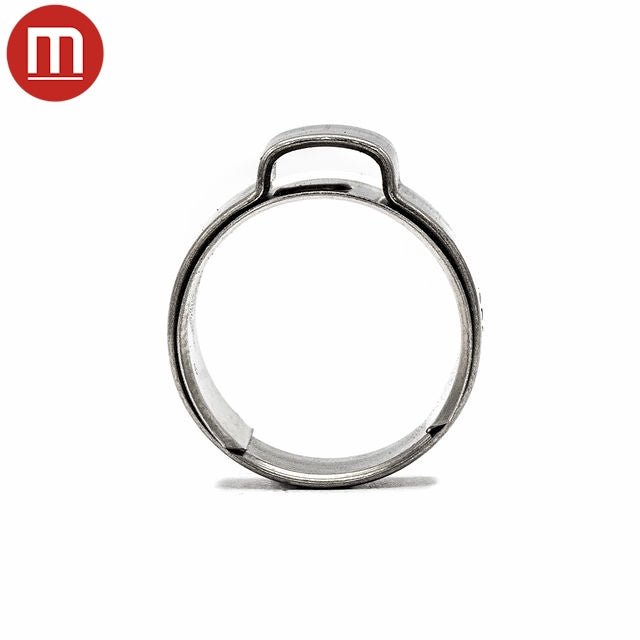

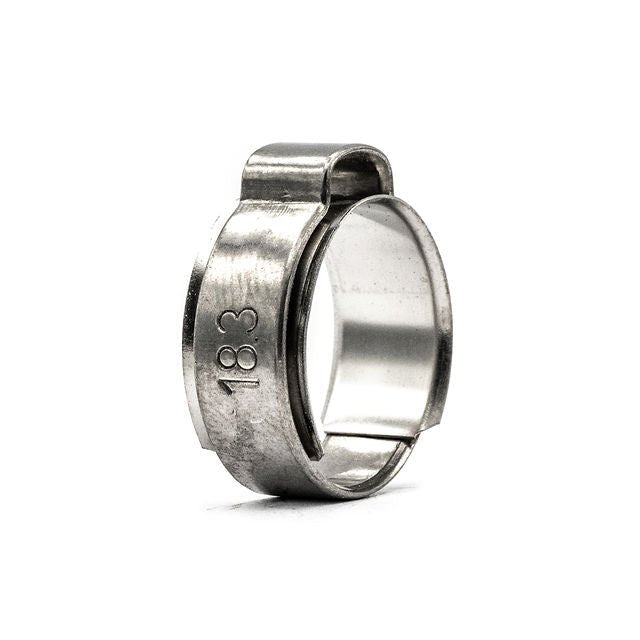

Mikalor Single Ear Hose Clamp with Inner Ring, 304 Stainless Steel

Mikalor Single Ear Hose Clamp with Inner Ring, 304 Stainless Steel

SEC-IR-7.5-W4

$1.20
$1.20
Sale Sold out
Shipping calculated at checkout.

470 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Reusable ?

Reusable: Yes / No response If product can or cant be reused.

2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

19/64 in - 21/64 in - 0.30in - 0.33in - 7.5mm - 8.5mm - 23012300 - SEC-IR-7.5-W4 - 15/64 in (6.0mm) - Very Good - No - 2D PDF - 2D DXF - 3D STP - $1.20 470
21/64 in - 3/8 in - 0.32in - 0.37in - 8.2mm - 9.5mm - 23012319 - SEC-IR-8.2-W4 - 15/64 in (6.0mm) - Very Good - No - 2D PDF - 2D DXF - 3D STP - $1.44 100
23/64 in - 13/32 in - 0.35in - 0.41in - 9.0mm - 10.5mm - 23012327 - SEC-IR-9.0-W4 - 1/4 in (6.5mm) - Very Good - No - 2D PDF - 2D DXF - 3D STP - $1.55 176
25/64 in - 29/64 in - 0.39in - 0.45in - 10.0mm - 11.5mm - 23012335 - SEC-IR-10.0-W4 - 1/4 in (6.5mm) - Very Good - No - 2D PDF - 2D DXF - 3D STP - $1.55 196
13/32 in - 31/64 in - 0.41in - 0.49in - 10.5mm - 12.5mm - 23012343 - SEC-IR-10.5-W4 - 1/4 in (6.5mm) - Very Good - No - 2D PDF - 2D DXF - 3D STP - $1.58 100
29/64 in - 17/32 in - 0.45in - 0.53in - 11.5mm - 13.5mm - 23012351 - SEC-IR-11.5-W4 - 9/32 in (7.0mm) - Very Good - No - 2D PDF - 2D DXF - 3D STP - $1.67 196
31/64 in - 37/64 in - 0.49in - 0.57in - 12.5mm - 14.5mm - 23012360 - SEC-IR-12.5-W4 - 9/32 in (7.0mm) - Very Good - No - 2D PDF - 2D DXF - 3D STP - $1.76 176
33/64 in - 39/64 in - 0.51in - 0.60in - 13.0mm - 15.3mm - 23012378 - SEC-IR-13.0-W4 - 9/32 in (7.0mm) - Very Good - No - 2D PDF - 2D DXF - 3D STP - $1.85 160
35/64 in - 41/64 in - 0.55in - 0.64in - 14.0mm - 16.3mm - 23012386 - SEC-IR-14.0-W4 - 9/32 in (7.0mm) - Very Good - No - 2D PDF - 2D DXF - 3D STP - $1.99 91
19/32 in - 11/16 in - 0.59in - 0.68in - 15.0mm - 17.3mm - 23012394 - SEC-IR-15.0-W4 - 9/32 in (7.0mm) - Very Good - No - 2D PDF - 2D DXF - 3D STP - $2.14 61
5/8 in - 23/32 in - 0.63in - 0.72in - 16.0mm - 18.3mm - 23012407 - SEC-IR-16.0-W4 - 19/64 in (7.5mm) - Very Good - No - 2D PDF - 2D DXF - 3D STP - $2.23 77
43/64 in - 49/64 in - 0.67in - 0.76in - 17.0mm - 19.3mm - 23012415 - SEC-IR-17.0-W4 - 19/64 in (7.5mm) - Very Good - No - 2D PDF - 2D DXF - 3D STP - $2.38 300

Description

The fact that these clamps are used on very small-bore hoses means that the material of the tube or hose can sometimes be very flexible, making it more difficult to ensure a leak tight assembly due to the possible deformation of the hose. In these cases, the inner-ring is key in helping to guarantee leak tightness as well as protecting the hose from being pinched during assembly. 304 Stainless Steel Clamps offer additional corrosion protection over the standard Galvanised Clamps

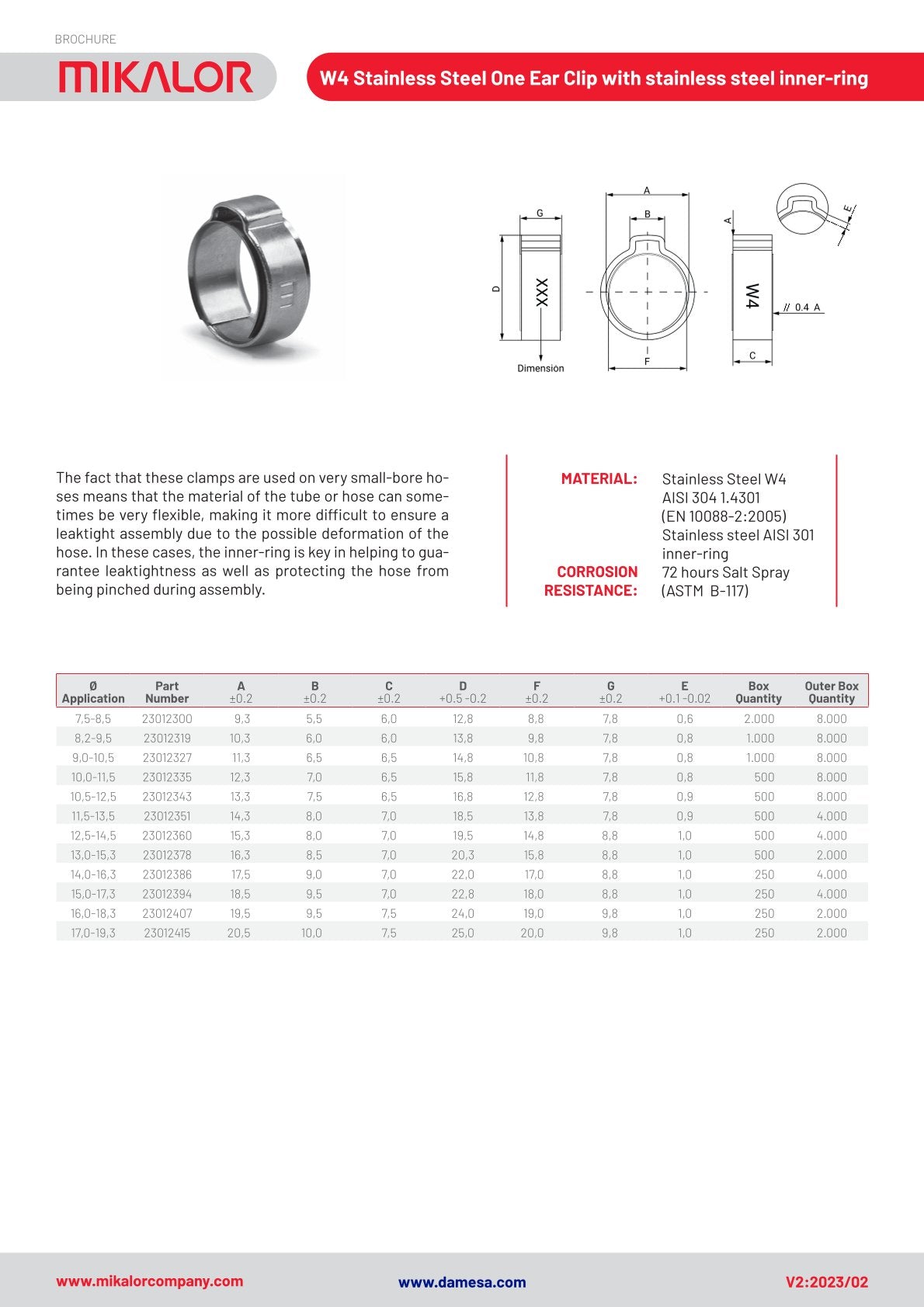

Product Specification Sheet

Download

Specification

Manufactured By Mikalor
HCL P/N SEC-IR-X-W4
Series Single Ear Inner Ring
Corrosion Resistance Very Good
Corrosion Specification 400 hours Salt Spray (ASTM B-117)
Band Material 304 Stainless Steel
Inner Ring Material 301 Stainless Steel
Finish Stainless Steel
Colour Silver
Country of Manufacture Spain
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Looking for a reliable, leak-proof hose connection? The Mikalor Single Ear Hose Clamp with Inner Ring, crafted from premium 304 stainless steel, is your solution. Engineered for precision and durability, these clamps are ideal for a wide range of applications, from automotive and marine to industrial and DIY projects.

Why Choose Mikalor Single Ear Hose Clamps?

  • Superior 304 Stainless Steel: Experience exceptional corrosion resistance and longevity, even in harsh environments. Perfect for both indoor and outdoor use.
  • Integrated Inner Ring: Provides a uniform 360-degree seal, eliminating leaks and ensuring a secure, tight fit.
  • Single Pinch Design: Offers quick and easy installation with standard pincers, saving you time and effort.
  • Precise Size Range: Available in sizes ranging from 7.5mm to 19.3mm (0.29 to 0.75 inches), catering to diverse hose diameters.
  • Mikalor Quality: Trust in the renowned Mikalor brand, synonymous with high-quality clamping solutions.
  • Versatile Applications: Ideal for fuel lines, air hoses, water pipes, and more

Perfect for:

  • Automotive Repairs and Maintenance
  • Plumbing and Irrigation Systems
  • Industrial Fluid Handling
  • DIY Projects and Home Improvement
  • Agricultural Equipment

Upgrade Your Hose Connections Today:

Mikalor Single Ear Hose Clamps with an inner ring are designed to outperform standard hose clamps. The added inner ring ensures even pressure distribution, which is crucial for preventing hose damage and leaks, especially with softer or more delicate hoses. The galvanized steel construction provides excellent protection against rust and corrosion, making these clamps a reliable choice for various indoor and outdoor applications.

The single ear design simplifies installation, allowing for quick and secure clamping with standard pincers or dedicated clamp tools. Whether you're working on a vehicle, repairing a plumbing system, or tackling a DIY project, Mikalor Single Ear Hose Clamps with an inner ring provide the
secure and reliable connection you need.

Key Features:

  • Material: 304 Stainless Steel
  • Type: Single Ear Hose Clamp with Inner Ring
  • Size Range: 7.5mm - 19.3mm (0.29in - 0.75in)
  • Corrosion-resistant
  • Easy installation
  • Secure, leak-proof seal

Upgrade your hose connections with the reliable performance of Mikalor 304 Stainless Steel Single Ear Hose Clamps. Order yours today and experience the difference!
