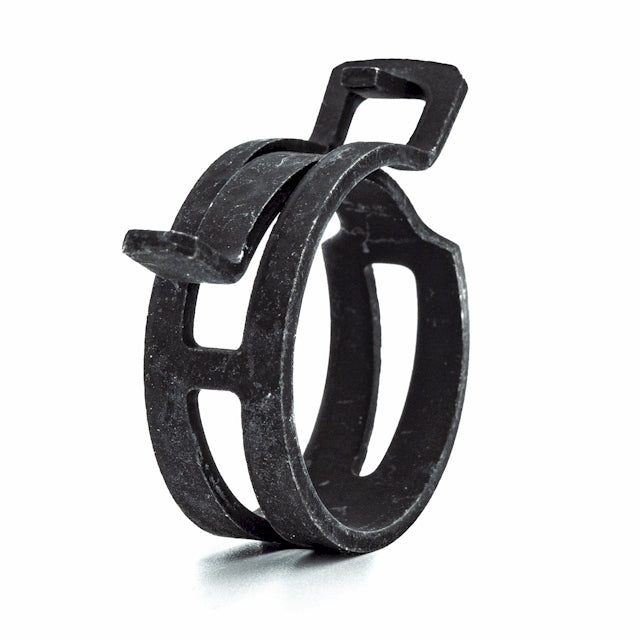

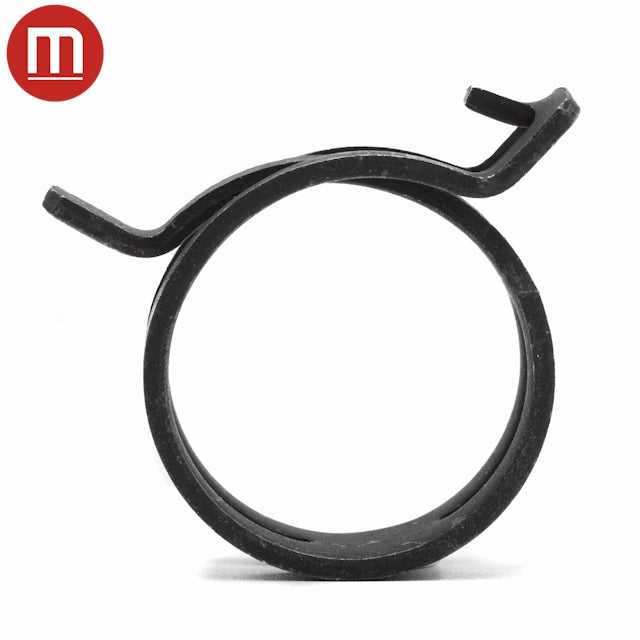

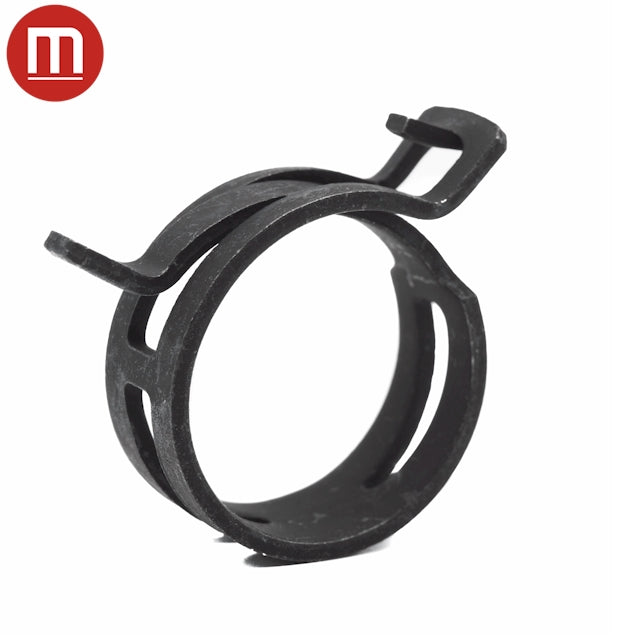

Mikalor Constant Pressure Heavy Duty Spring Clamp - 1/2" Steel Band

Mikalor Constant Pressure Heavy Duty Spring Clamp - 1/2" Steel Band

MIK-CTB-13

$0.81
$0.81
Sale Sold out
Shipping calculated at checkout.

157 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Colour
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
2D PDF ?

2D PDF: A standard document format containing two-dimensional drawings.
2D DXF ?

2D DXF: A standard file format for exchanging two-dimensional Computer-Aided Design (CAD) drawings between different software programs.
3D STP ?

3D STEP: A standard file format used to exchange three-dimensional product model data between different CAD software programs.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

15/32 in - 9/16 in - 0.47in - 0.56in - 12.0mm - 14.2mm - 1/2 in (12.0mm) - Black - MIK-CTB-13 - 3031766 - Very Good - 2D PDF - 2D DXF - 3D STP - $0.81 157
17/32 in - 5/8 in - 0.52in - 0.62in - 13.3mm - 15.8mm - 1/2 in (12.0mm) - Black - MIK-CTB-14 - 3031834 - Very Good - 2D PDF - 2D DXF - 3D STP - $0.85 158
35/64 in - 21/32 in - 0.55in - 0.65in - 13.9mm - 16.5mm - 1/2 in (12.0mm) - Black - MIK-CTB-15 - 3031777 - Very Good - 2D PDF - 2D DXF - 3D STP - $0.89 163
19/32 in - 11/16 in - 0.59in - 0.69in - 14.9mm - 17.5mm - 1/2 in (12.0mm) - Black - MIK-CTB-16 - 3031802 - Very Good - 2D PDF - 2D DXF - 3D STP - $0.95 182
39/64 in - 47/64 in - 0.61in - 0.73in - 15.6mm - 18.5mm - 1/2 in (12.0mm) - Black - MIK-CTB-17 - 3031501 - Very Good - 2D PDF - 2D DXF - 3D STP - $0.98 163
5/8 in - 3/4 in - 0.63in - 0.75in - 16.0mm - 19.0mm - 1/2 in (12.0mm) - Black - MIK-CTB-18 - 3031812 - Very Good - 2D PDF - 2D DXF - 3D STP - $0.98 132
45/64 in - 51/64 in - 0.70in - 0.80in - 17.8mm - 20.2mm - 1/2 in (12.0mm) - Black - MIK-CTB-19 - 3031510 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.02 193
23/32 in - 27/32 in - 0.72in - 0.85in - 18.4mm - 21.6mm - 1/2 in (12.0mm) - Black - MIK-CTB-20 - 3031528 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.05 184
49/64 in - 57/64 in - 0.76in - 0.89in - 19.4mm - 22.5mm - 1/2 in (12.0mm) - Black - MIK-CTB-21 - 3031536 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.08 167
13/16 in - 61/64 in - 0.81in - 0.95in - 20.5mm - 24.2mm - 1/2 in (12.0mm) - Black - MIK-CTB-22 - 3031538 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.06 172
53/64 in - 31/32 in - 0.83in - 0.97in - 21.0mm - 24.7mm - 1/2 in (12.0mm) - Black - MIK-CTB-23 - 3031545 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.09 152
55/64 in - 1,1/32 in - 0.87in - 1.02in - 22.0mm - 26.0mm - 1/2 in (12.0mm) - Black - MIK-CTB-24 - 3031552 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.12 292
59/64 in - 1,1/16 in - 0.93in - 1.06in - 23.5mm - 26.8mm - 1/2 in (12.0mm) - Black - MIK-CTB-25 - 3031560 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.16 262
61/64 in - 1,7/64 in - 0.96in - 1.10in - 24.3mm - 28.0mm - 1/2 in (12.0mm) - Black - MIK-CTB-26 - 3031579 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.19 48
1 in - 1,5/32 in - 0.99in - 1.15in - 25.2mm - 29.2mm - 1/2 in (12.0mm) - Black - MIK-CTB-27 - 3031587 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.26 194
1,1/32 in - 1,3/16 in - 1.03in - 1.19in - 26.1mm - 30.2mm - 1/2 in (12.0mm) - Black - MIK-CTB-28 - 3031593 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.37 43
1,1/16 in - 1,15/64 in - 1.06in - 1.24in - 27.0mm - 31.5mm - 1/2 in (12.0mm) - Black - MIK-CTB-29 - 3031595 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.43 128
1,7/64 in - 1,9/32 in - 1.10in - 1.28in - 28.0mm - 32.5mm - 1/2 in (12.0mm) - Black - MIK-CTB-30 - 3031823 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.48 0
1,5/32 in - 1,23/64 in - 1.15in - 1.36in - 29.3mm - 34.5mm - 1/2 in (12.0mm) - Black - MIK-CTB-32 - 3031616 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.58 191
1,13/64 in - 1,7/16 in - 1.20in - 1.43in - 30.6mm - 36.4mm - 1/2 in (12.0mm) - Black - MIK-CTB-34 - 3031620 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.34 93
1,15/64 in - 1,1/2 in - 1.24in - 1.50in - 31.5mm - 38.0mm - 1/2 in (12.0mm) - Black - MIK-CTB-35 - 3031624 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.63 120
1,9/32 in - 1,17/32 in - 1.28in - 1.54in - 32.5mm - 39.0mm - 1/2 in (12.0mm) - Black - MIK-CTB-36 - 3031632 - Very Good - 2D PDF - 2D DXF - 3D STP - $1.67 146
1,23/64 in - 1,41/64 in - 1.36in - 1.63in - 34.5mm - 41.5mm - 1/2 in (12.0mm) - Black - MIK-CTB-38 - 3031640 - Very Good - 2D PDF - 2D DXF - 3D STP - $2.01 138
1,25/64 in - 1,43/64 in - 1.40in - 1.67in - 35.5mm - 42.5mm - 1/2 in (12.0mm) - Black - MIK-CTB-40 - 3031667 - Very Good - 2D PDF - 2D DXF - 3D STP - $2.17 170
1,25/64 in - 1,23/32 in - 1.39in - 1.71in - 35.3mm - 43.5mm - 1/2 in (12.0mm) - Black - MIK-CTB-41 - 3031669 - Very Good - 2D PDF - 2D DXF - 3D STP - $2.15 188
1,15/32 in - 1,3/4 in - 1.46in - 1.75in - 37.2mm - 44.5mm - 1/2 in (12.0mm) - Black - MIK-CTB-42 - 3031675 - Very Good - 2D PDF - 2D DXF - 3D STP - $2.28 73
1,33/64 in - 1,53/64 in - 1.52in - 1.83in - 38.5mm - 46.5mm - 1/2 in (12.0mm) - Black - MIK-CTB-44 - 3031691 - Very Good - 2D PDF - 2D DXF - 3D STP - $2.41 66
1,19.32 in - 1,29/32 in - 1.59in - 1.91in - 40.5mm - 48.5mm - 1/2 in (12.0mm) - Black - MIK-CTB-46 - 3031704 - Very Good - 2D PDF - 2D DXF - 3D STP - $2.48 70
1,5/8 in - 1,31/32 in - 1.63in - 1.97in - 41.4mm - 50.0mm - 1/2 in (12.0mm) - Black - MIK-CTB-47 - 3031712 - Very Good - 2D PDF - 2D DXF - 3D STP - $2.53 95
1,43/64 in - 2,3/64 in - 1.67in - 2.05in - 42.5mm - 52.0mm - 1/2 in (12.0mm) - Black - MIK-CTB-49 - 3031719 - Very Good - 2D PDF - 2D DXF - 3D STP - $2.61 86
1,23/32 in - 2,3/32 in - 1.71in - 2.09in - 43.5mm - 53.0mm - 1/2 in (12.0mm) - Black - MIK-CTB-50 - 3031720 - Very Good - 2D PDF - 2D DXF - 3D STP - $3.64 100
1,47/64 in - 2,1/8 in - 1.73in - 2.13in - 44.0mm - 54.0mm - 1/2 in (12.0mm) - Black - MIK-CTB-51 - 3031739 - Very Good - 2D PDF - 2D DXF - 3D STP - $3.61 87
1,13/16 in - 2,13/16 in - 1.81in - 2.20in - 46.0mm - 55.8mm - 1/2 in (12.0mm) - Black - MIK-CTB-53 - 3031747 - Very Good - 2D PDF - 2D DXF - 3D STP - $3.79 78
1,27/32 in - 2,9/32 in - 1.84in - 2.28in - 46.8mm - 58.0mm - 1/2 in (12.0mm) - Black - MIK-CTB-55 - 3031755 - Very Good - 2D PDF - 2D DXF - 3D STP - $3.84 36

Description

This heavy-duty spring-band clamp is manufactured according to DIN 3021. It is especially recommended for applications where temperature can vary from -40 ºC to +120 ºC. The design of this clamp means that thanks to the elasticity of the material used in its manufacture, it maintains the same radial force despite changes in temperature. It is fast and easy to mount and is also reusable.

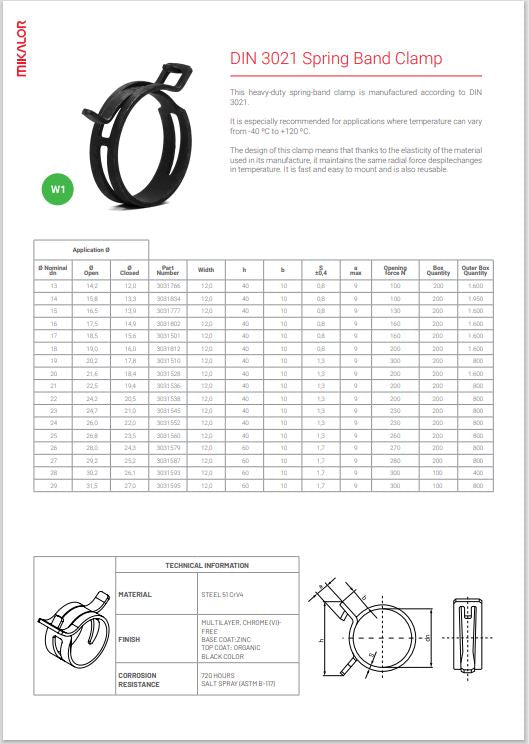

Product Specification Sheet

Download

Specification

Manufactured By Mikalor
HCL P/N MIK-CTB-X
Series DIN 3021 Spring Band Clamp
Corrosion Resistance Very Good
Corrosion Specification 720 Hrs Salt Spray Protection ASTM B-117
Hose Clamp Width in/mm 1/2 in (12.7mm)
Band Material Hardened Steel
Finish Multilayer, Chrome (V1) Free, Base coat: Zinc, Top Coat, Black Colour
Colour Black
Specification 1 Manufactured according to DIN 3021
For use with Radiator Hoses
Country of Manufacture Germany
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Consistent Sealing Power: Mikalor Constant Pressure Heavy Duty Spring Clamp - ½" Steel Band (12.0-58.0mm | 0.47-2.28 Inches)

Ensure a consistently tight and reliable seal that adapts to temperature fluctuations with the Mikalor Constant Pressure Heavy Duty Spring Clamp. Constructed with a robust ½" (12mm) wide steel band, this clamp utilizes a heavy-duty spring mechanism to automatically adjust clamping force. This maintains optimal pressure despite hose expansion and contraction, providing a leak-free connection across a versatile size range of 12.0 to
58.0mm (0.47 to 2.28 Inches).

Why Choose the Mikalor Constant Pressure Heavy Duty Spring Clamp?

  • Automatic Constant Tension: The heavy-duty spring mechanism continuously adjusts clamping force to compensate for hose expansion and contraction due to temperature variations, preventing leaks.
  • Robust Steel Band (½" / 12mm Wide): Provides excellent strength and durability for demanding applications.
  • Reliable Spring Mechanism: Ensures consistent pressure over a wide temperature range.
  • Versatile Size Range: Covers diameters from 12.0 to 58.0mm (0.47 to 2.28 Inches), suitable for various hose applications.
  • Easy Installation: Designed for quick and straightforward installation without the need for specialized tools (typically slip-on).
  • Maintains Seal Integrity: Prevents loosening due to thermal cycling, ensuring long-term reliability.
  • Heavy-Duty Performance: Ideal for applications where consistent pressure is critical.

Perfect For:

  • Automotive Cooling Systems (Radiator Hoses, Heater Hoses)
  • Fuel Lines
  • Vacuum Lines
  • Industrial Applications with Temperature Variations
  • Agricultural Equipment

Experience Reliable, Self-Adjusting Sealing:

The Mikalor Constant Pressure Heavy Duty Spring Clamp is engineered to provide a superior and long-lasting seal. The heavy-duty spring automatically adjusts to changes in hose diameter caused by temperature variations, preventing leaks that can occur with standard clamps. The robust steel band ensures a strong and durable connection. This clamp is an excellent choice for applications where maintaining a consistent and reliable seal is crucial, especially under fluctuating temperatures.

Key Features:

  • Material: Steel Band (typically high-strength spring steel) with a protective coating (finish may vary)
  • Bandwidth: ½" (12mm)
  • Size Range: 12.0-58.0mm (0.47-2.28 Inches)
  • Type: Constant Pressure Spring Clamp
  • Automatic Adjustment for Consistent Sealing
  • Robust and Durable Construction
  • Easy Slip-On Installation

For a consistently tight, leak-free seal that automatically
adjusts to temperature changes, choose the Mikalor Constant Pressure Heavy Duty Spring Clamp. Invest in reliability and order yours today!
