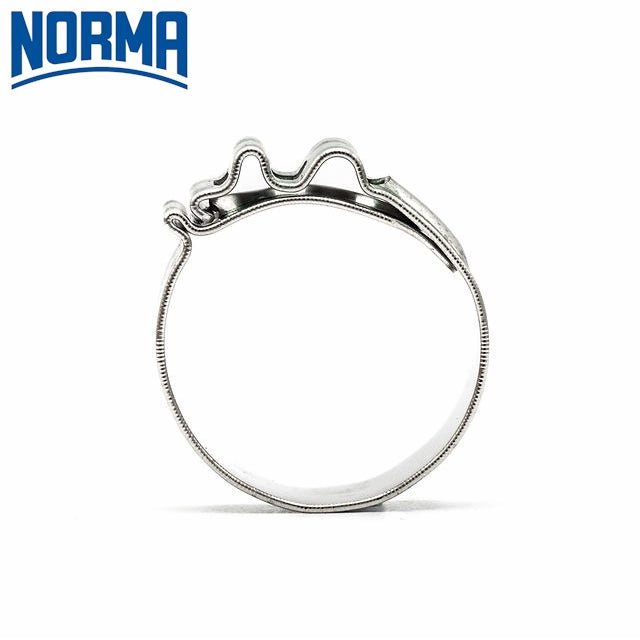

Norma Snap Fit Low Profile COBRA Hose Clamp with Spring for Constant Tension - 304 Stainless Steel

Norma Snap Fit Low Profile COBRA Hose Clamp with Spring for Constant Tension - 304 Stainless Steel

COBRA-7.5-W4

$0.90
$0.90
Sale Sold out
Shipping calculated at checkout.

230 in stock
  • Free standard shipping. Next day delivery available. Find out more
View full details

Need advice? Talk to our expert customer support team

Call

281 7171145
Monday-Friday 8am to 4pm

Email

sales@hcl-clamping.com
Scroll
Clamp Dia In (fr) ?

Clamp Dia In (fr): The clamp's internal diameter listed as a fractional measurement in inches (e.g., 1, 1/2 in.).
Clamp Dia In ?

Clamp Dia In: The minimum to maximum inner diameter (in.) the clamp can securely cover, defining its usable size range.
Clamp Dia mm ?

Clamp Dia mm: The required metric size for a secure fit, indicating the outer diameter (in mm) of the component the clamp is meant to hold.
MFG P/N ?

MFG P/N: The unique identifying number assigned to a part by its manufacturer.
HCL P/N ?

HCL/ PN: The unique identifying number assigned to a part by HCL
Band Width ?

Band Width: The measurement of the clamp's band or strap, indicating its width (often in mm or inches) and how much surface area it covers.
Colour Code
Material ?

Material: The core substance used to manufacture the product (e.g., steel, plastic, rubber). Affects durability and performance.
Corrosion Res ?

Corrosion Resistance: Refers to a material's ability to resist deterioration or damage caused by chemical reactions with its environment, such as rusting.
Price ?

Price: The cost per unit

Stock ?

Stock: available products that can be purchased

Order Qty ?

Order Quantity: The total amount of units you wish to order

5/16 in - 23/64 in - 0.31in - 0.35in - 8.0mm - 9.0mm - 0107700075 - COBRA-7.5-W4 - 1/4 in (7.0mm) - White - 304SS - Very Good - $0.90 230
21/64 in - 3/8 in - 0.33in - 0.37in - 8.5mm - 9.5mm - O107700008 - COBRA-8.0-W4 - 1/4 in (7.0mm) - Yellow - 304SS - Very Good - $0.92 418
23/64 in - 25/64 in - 0.35in - 0.39in - 9.0mm - 10.0mm - 0107700085 - COBRA-8.5-W4 - 1/4 in (7.0mm) - Green - 304SS - Very Good - $0.95 401
3/8 in - 13/32 in - 0.37in - 0.41in - 9.5mm - 10.5mm - 0107700009 - COBRA-9.0-W4 - 1/4 in (7.0mm) - Purple - 304SS - Very Good - $0.98 1000
25/64 in - 7/16 in - 0.39in - 0.43in - 10.0mm - 11.0mm - 0107700095 - COBRA-9.5-W4 - 1/4 in (7.0mm) - Black - 304SS - Very Good - $1.01 951
13/32 in - 29/64 in - 0.41in - 0.45in - 10.5mm - 11.5mm - 0107700010 - COBRA-10.0-W4 - 1/4 in (7.0mm) - White - 304SS - Very Good - $1.03 1312
7/16 in - 15/32 in - 0.43in - 0.47in - 11.0mm - 12.0mm - 01077000105 - COBRA-10.5-W4 - 5/16 in (8.0mm) - - 304SS - Very Good - $1.06 965
29/64 in - 31/64 in - 0.45in - 0.49in - 11.5mm - 12.5mm - 01077000011 - COBRA-11.0-W4 - 5/16 in (8.0mm) - Green - 304SS - Very Good - $1.09 669
15/32 in - 33/64 in - 0.47in - 0.51in - 12.0mm - 13.0mm - 0107700115 - COBRA-11.5-W4 - 5/16 in (8.0mm) - Black - 304SS - Very Good - $1.12 1474
31/64 in - 35/64 in - 0.49in - 0.55in - 12.5mm - 14.0mm - 01087006012 - COBRA-12-W4 - 5/16 in (8.0mm) - Yellow - 304SS - Very Good - $1.15 213
17/32 in - 19/32 in - 0.53in - 0.59in - 13.5mm - 15.0mm - 01087006013 - COBRA-13-W4 - 5/16 in (8.0mm) - Purple - 304SS - Very Good - $1.17 495
37/64 in - 5/8 in - 0.57in - 0.63in - 14.5mm - 16.0mm - 01087006014 - COBRA-14-W4 - 5/16 in (8.0mm) - White - 304SS - Very Good - $1.20 256
39/64 in - 43/64 in - 0.61in - 0.67in - 15.5mm - 17.0mm - 01087006015 - COBRA-15-W4 - 5/16 in (8.0mm) - Green - 304SS - Very Good - $1.23 561
21/32 in - 45/64 in - 0.65in - 0.71in - 16.5mm - 18.0mm - 01087006016 - COBRA-16-W4 - 5/16 in (8.0mm) - Black - 304SS - Very Good - $1.26 279
11/16 in - 3/4 in - 0.69in - 0.75in - 17.5mm - 19.0mm - 01087006017 - COBRA-17-W4 - 5/16 in (8.0mm) - Yellow - 304SS - Very Good - $1.29 422
47/64 in - 25/32 in - 0.73in - 0.79in - 18.5mm - 20.0mm - 01087006018 - COBRA-18-W4 - 5/16 in (8.0mm) - Purple - 304SS - Very Good - $1.31 267
49/64 in - 53/64 in - 0.77in - 0.83in - 19.5mm - 21.0mm - 01087006019 - COBRA-19-W4 - 5/16 in (8.0mm) - White - 304SS - Very Good - $1.34 0
13/16 in - 55/64 in - 0.81in - 0.87in - 20.5mm - 22.0mm - 01087006020 - COBRA-20-W4 - 5/16 in (8.0mm) - Green - 304SS - Very Good - $1.37 411
27/32 in - 29/32 in - 0.85in - 0.91in - 21.5mm - 23.0mm - 01087006021 - COBRA-21-W4 - 5/16 in (8.0mm) - Black - 304SS - Very Good - $1.40 237
57/64 in - 15/16 in - 0.89in - 0.94in - 22.5mm - 24.0mm - 01087006022 - COBRA-22-W4 - 5/16 in (8.0mm) - Yellow - 304SS - Very Good - $1.43 415
59/64 in - 63/64 in - 0.93in - 0.98in - 23.5mm - 25.0mm - 01087006023 - COBRA-23-W4 - 5/16 in (8.0mm) - Purple - 304SS - Very Good - $1.45 428
31/32 in - 1,1/32 in - 0.96in - 1.02in - 24.5mm - 26.0mm - 01087006024 - COBRA-24-W4 - 5/16 in (8.0mm) - White - 304SS - Very Good - $1.48 232
1 in - 1,1/16 in - 1.00in - 1.06in - 25.5mm - 27.0mm - 01087006025 - COBRA-25-W4 - 5/16 in (8.0mm) - Green - 304SS - Very Good - $1.51 0
1,3/64 in - 1,7/64 in - 1.04in - 1.10in - 26.5mm - 28.0mm - 01087006026 - COBRA-26-W4 - 5/16 in (8.0mm) - Black - 304SS - Very Good - $1.54 263
1,5/64 in - 1,9/64 in - 1.08in - 1.14in - 27.5mm - 29.0mm - 01087006027 - COBRA-27-W4 - 5/16 in (8.0mm) - Yellow - 304SS - Very Good - $1.57 438
1,1/8 in - 1,3/16 in - 1.12in - 1.18in - 28.5mm - 30.0mm - 01087006028 - COBRA-28-W4 - 5/16 in (8.0mm) - Purple - 304SS - Very Good - $1.59 1942
1,5/32 in - 1,7/32 in - 1.16in - 1.22in - 29.5mm - 31.0mm - 01087006029 - COBRA-29-W4 - 5/16 in (8.0mm) - White - 304SS - Very Good - $1.62 1223
1,13/64 in - 1,17/64 in - 1.20in - 1.26in - 30.5mm - 32.0mm - 01087006030 - COBRA-30-W4 - 5/16 in (8.0mm) - - 304SS - Very Good - $1.65 404

Description

NORMACLAMP® COBRA products are bolt-free, one-piece hose clips. Their low overall height enables precise installation in even the tightest of spaces. NORMACLAMP® COBRA clamps are quick and easy to install. They have a self adjusting diameter which compensates for tolerances at the outer diameter of the hose. They are colour coded to provide a rapid way of visually distinguishing between nominal diameters and they have a single lock-in point which provides an installation indicator for easy checking.

Product Specification Sheet

Download

Specification

Manufactured By Norma
HCL P/N COBRA-X-W4
Series Cobra
Corrosion Resistance Very Good
Hose Clamp Width in/mm 1/4 in (7.0mm)5/16 in (8.0mm)
Band Material 304 Stainless Steel
Colour Silver
Country of Manufacture Germany
Tariff Code 7326 90 92
Hazardous Goods No
RoHS Compliant Yes

Space-Saving & Self-Adjusting: Norma Snap Fit Low Profile COBRA Hose Clamp with Spring for Constant Tension - 304 Stainless Steel

Experience rapid, tool-free installation and a consistently secure seal that adapts to temperature changes in space-restricted areas with the Norma Snap Fit Low Profile COBRA Hose Clamp. Constructed from high-quality 304 stainless steel, this non-metallic (referring to the snap-fit mechanism) clamp offers excellent corrosion resistance and incorporates a spring for automatic tension adjustment. The unique snap-fit COBRA design allows for quick, one-handed installation and removal across a compact size range of 8.0 to 32.0mm (0.31 to 1.25 Inches), while its low profile minimizes protrusion.

Why Choose the Norma Snap Fit Low Profile COBRA Hose Clamp with Spring for Constant Tension?

Ultra-Fast Snap-Fit COBRA Installation: Simply push to engage and squeeze to release – no tools required for quick and easy application, even in tight spaces.

Low Profile Design: Ideal for applications with limited space or where minimal protrusion is desired.

Automatic Constant Tension with Spring: The integrated spring mechanism compensates for hose expansion and contraction due to temperature changes, maintaining optimal sealing pressure.

Superior 304 Stainless Steel Band: Offers excellent corrosion resistance for long-lasting performance in various environments.

Compact Size Range: Accommodates hose and tube diameters from 8.0 to 32.0mm (0.31 to 1.25 Inches), perfect for smaller connections.

Self-Locking COBRA Design: Ensures a secure and reliable hold once engaged.

Resistant to Many Chemicals: Offers good resistance to oils, fuels, and various chemicals.

Trusted Norma Quality: Norma is a reputable global manufacturer known for producing high-performance fastening and connecting solutions.

Perfect For:

Automotive

Vacuum and Small Fluid Lines in Tight Engine Bays

Appliance Assembly in Space-Constrained Areas

Medical Equipment

Low-Profile Cable and Wire Management

Applications where quick installation, constant tension, and a low profile are crucial

Enjoy Effortless, Self-Adjusting Connections in Tight Spaces:

The Norma Snap Fit Low Profile COBRA Hose Clamp offers the ultimate in convenience, consistent sealing, and space efficiency. Its innovative snap-fit COBRA design allows for incredibly fast, tool-free installation, saving valuable time during assembly or maintenance in confined areas. The 304 stainless steel band provides excellent corrosion resistance, while the integrated spring ensures a consistently tight seal that adapts to temperature fluctuations. The key advantage of this clamp is its low profile, minimizing bulk and potential interference in space-restricted applications.

Key Features:

Material:304 Stainless Steel Band with Polymer Snap-Fit Mechanism and Stainless Steel Spring

Type: Snap Fit (Quick Release), Low Profile Hose Clamp with Constant Tension Spring

Size Range: 8.0-32.0mm (0.31-1.25 Inches)

Excellent Corrosion Resistance (304 Stainless Steel Band)

Ultra-Fast, Install with Manual Pliers or HCL's High Speed Pnuematic Air Tools
