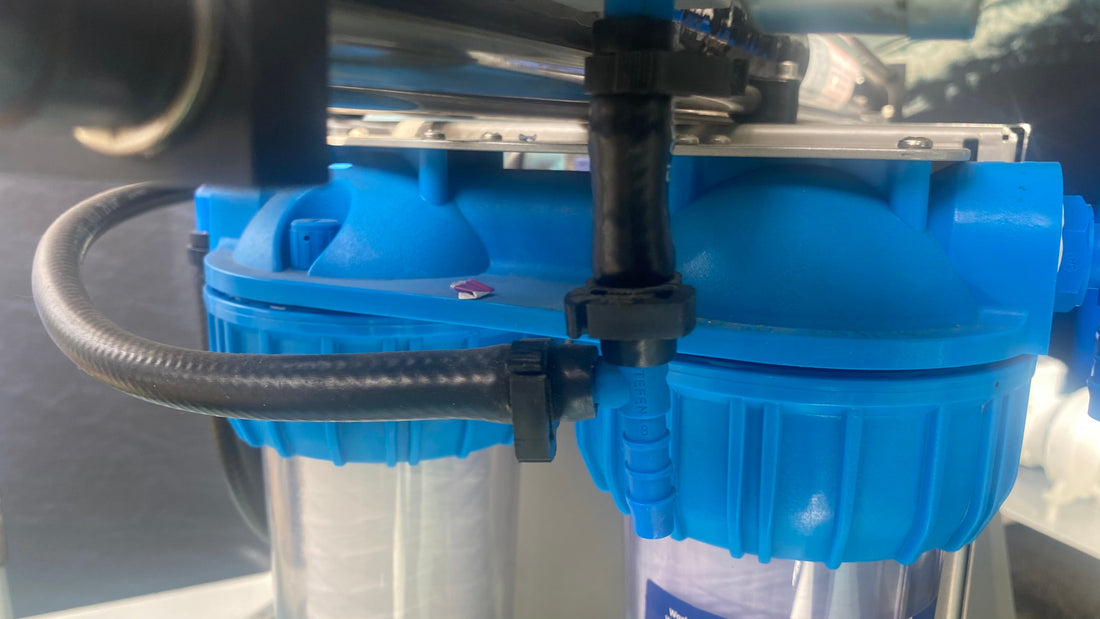

Water Filtration

Filtration Hose Clamps: Ensuring Leak-Free Systems for Purity and Performance

In the diverse world of filtration, from industrial water treatment and chemical processing to HVAC air purification and specialized laboratory applications, hose clamps play a surprisingly critical role. Their primary function is to ensure a secure, leak-free connection between hoses and filtration components (such as filter housings, pumps, and valves). This integrity is paramount to prevent contamination, maintain system efficiency, and safeguard the purity of the filtered media.

Key Demands for Hose Clamps in Filtration Systems

The specific requirements for filtration hose clamps are driven by the nature of the filtration process and the media being handled:

• Leak Prevention: The most fundamental requirement. Any leak can lead to bypass of unfiltered media, loss of valuable product, environmental contamination, or safety hazards.
• Chemical Compatibility: Clamps must resist corrosion and degradation from the filtered liquid or gas, as well as any cleaning agents or sanitizers used in the system.
• Material Integrity: In sensitive applications (e.g., pharmaceutical, food & beverage, ultra-pure water), clamps must not leach any contaminants into the filtered media.
• Pressure and Temperature Resistance: Clamps must maintain their seal under the operating pressures and temperatures of the filtration system, which can vary significantly.
• Ease of Assembly/Disassembly: Filtration systems often require regular filter changes, maintenance, or cleaning. Clamps that allow for quick and easy, yet secure, removal and reinstallation are highly valued.
• Vibration Resistance: Pumps and other system components can induce vibration, requiring clamps that will not loosen over time.
• Durability: Longevity is important to minimize downtime and replacement costs.

Common Types and Materials for Filtration Hose Clamps

The selection of clamp type and material depends heavily on the specific filtration application:

1. All-Stainless Steel Worm Gear Clamps (AISI 304 & 316):
• Description: The most widely used type due to their versatility, cost-effectiveness, and ease of installation. Consist of a band, housing, and screw. For filtration, it is critical that all components are stainless steel.
• Applications: General water filtration (residential, commercial, industrial), HVAC filtration, oil filtration, and many chemical processing filtration systems.
• Materials:
• AISI 304 Stainless Steel: Good for general industrial water filtration and many non-corrosive chemical applications.
• AISI 316 (or 316L) Stainless Steel: Preferred for highly corrosive chemicals, saltwater environments, and applications where enhanced resistance to pitting and crevice corrosion is needed (e.g., some pharmaceutical, food & beverage, or aggressive chemical filtration).
• Features: Offer good clamping force, adjustability, and are widely available.
2. T-Bolt Clamps:
• Description: Known for providing a higher, more uniform clamping force than worm gear clamps, achieved with a robust band and a T-bolt mechanism secured by a lock nut.
• Applications: High-pressure filtration systems, large diameter hoses on industrial filters, vacuum filtration systems where a superior seal is critical, and systems with significant vibration. Often found on bag filter housings, cartridge filter vessels, and industrial process lines.
• Materials: Primarily AISI 304 or 316 stainless steel, chosen based on chemical compatibility and pressure requirements.
• Features: Excellent seal integrity under high pressure, strong vibration resistance, and a very secure connection.
3. Band Clamps (Heavy-Duty Strapping Systems):
• Description: Utilize continuous rolls of stainless steel banding with separate buckles, cut to the required length. The band is tensioned and locked with a specialized tool.
• Applications: Large diameter filter housings, custom filtration setups, and where flexible hose routing requires tailored lengths or robust, permanent securing of connections. Less common for frequent disassembly.
• Materials: High-strength stainless steel (304, 316).
• Features: Highly versatile, capable of handling very large diameters, and providing exceptional strength.
4. Sanitary/Tri-Clamp Fittings (with Clamps):
• Description: While not a hose clamp in the traditional sense, these are the predominant connection method in filtration systems demanding the highest levels of hygiene and purity. They consist of two flanged ferrules, a gasket, and a specialized sanitary clamp (often single or double-hinged).
• Applications: Pharmaceutical filtration, food and beverage filtration, biotech, and ultra-pure water systems where preventing contamination, ensuring easy cleaning (CIP/SIP), and eliminating dead spaces are paramount.
• Materials: AISI 316L stainless steel for the clamp and ferrules, with gaskets made from FDA-compliant materials like EPDM, Silicone, PTFE, or Viton, chosen for chemical and temperature compatibility.
• Features: Designed for smooth, crevice-free internal surfaces, quick disassembly for cleaning/sterilization, and elimination of contamination points.

Specific Considerations for Filtration Applications:

• Media Compatibility: Always verify that the clamp material is compatible with the liquid or gas being filtered, and any cleaning/disinfecting agents used.
• Pressure Ratings: Ensure the chosen clamp type and material are rated for the maximum operating pressure of the filtration system, including any potential pressure spikes.
• Temperature Ranges: Consider both the operating temperature of the fluid and the ambient temperature of the environment.
• Surface Finish (for sensitive applications): In pharmaceutical or food applications, a smooth surface finish (often electropolished) on the clamp and fittings is critical for hygiene and to prevent microbial adhesion.
• Vibration Control: For systems with significant vibration, consider using T-bolt clamps or clamps with specific anti-vibration features (e.g., nylon inserts in nuts).
• Installation Torque: Proper torque is vital. Over-tightening can damage the hose or the clamp; under-tightening leads to leaks. Use a torque wrench when specified.

By carefully selecting the appropriate hose clamp type and material, filtration system designers and operators can ensure robust, leak-free connections that maintain the integrity of the filtration process, safeguard product purity, and contribute to efficient and reliable operation.
