Deep Dive into Infrastructure Protection: Pile Protection Solutions âš“

Protecting the foundational elements of marine and civil infrastructure—specifically, the piles of bridges, piers, and offshore structures—is critical due to constant exposure to harsh environments. Foundation piles made of steel, concrete, or timber in the tidal and splash zones are continuously threatened by corrosion, biological attack (like marine borers), and physical damage from ice or debris. Pile protection solutions are essential, engineered systems used for both preventing damage and rehabilitating deteriorated structures.

1. Corrosion Mitigation and Prevention (Wraps & Active Systems)

These systems focus on creating a barrier or actively reversing the corrosive forces, which is vital for steel and reinforced concrete piles.

  • Petrolatum/Wax Tape Wraps: This is a versatile, cold-applied system ideal for complex or irregular geometries, submerged areas, and the splash zone. It involves applying a specialized petrolatum compound (paste/primer) directly to the pile surface. This compound, when covered by a protective, conformable outer wrap, completely excludes oxygen and moisture, chemically inhibiting corrosion. This method is highly effective because it can be applied to piles of various shapes and diameters without needing a perfect, rigid fit.

  • Galvanic Anode Jacket Systems: Used primarily for existing steel or reinforced concrete piles, this is an active corrosion control solution. It combines a durable outer shell (like a Fiber Reinforced Plastic or PVC jacket) with a built-in sacrificial anode (typically zinc or aluminium). The jacket acts as a form and barrier, while the anode provides continuous Cathodic Protection (CP) to the underlying steel reinforcement, actively stopping the corrosion process.

2. Structural Repair and Reinforcement (Jackets)

When piles have already experienced significant structural material loss, a repair system must restore the load-bearing capacity and provide a long-term, hard-shell barrier.

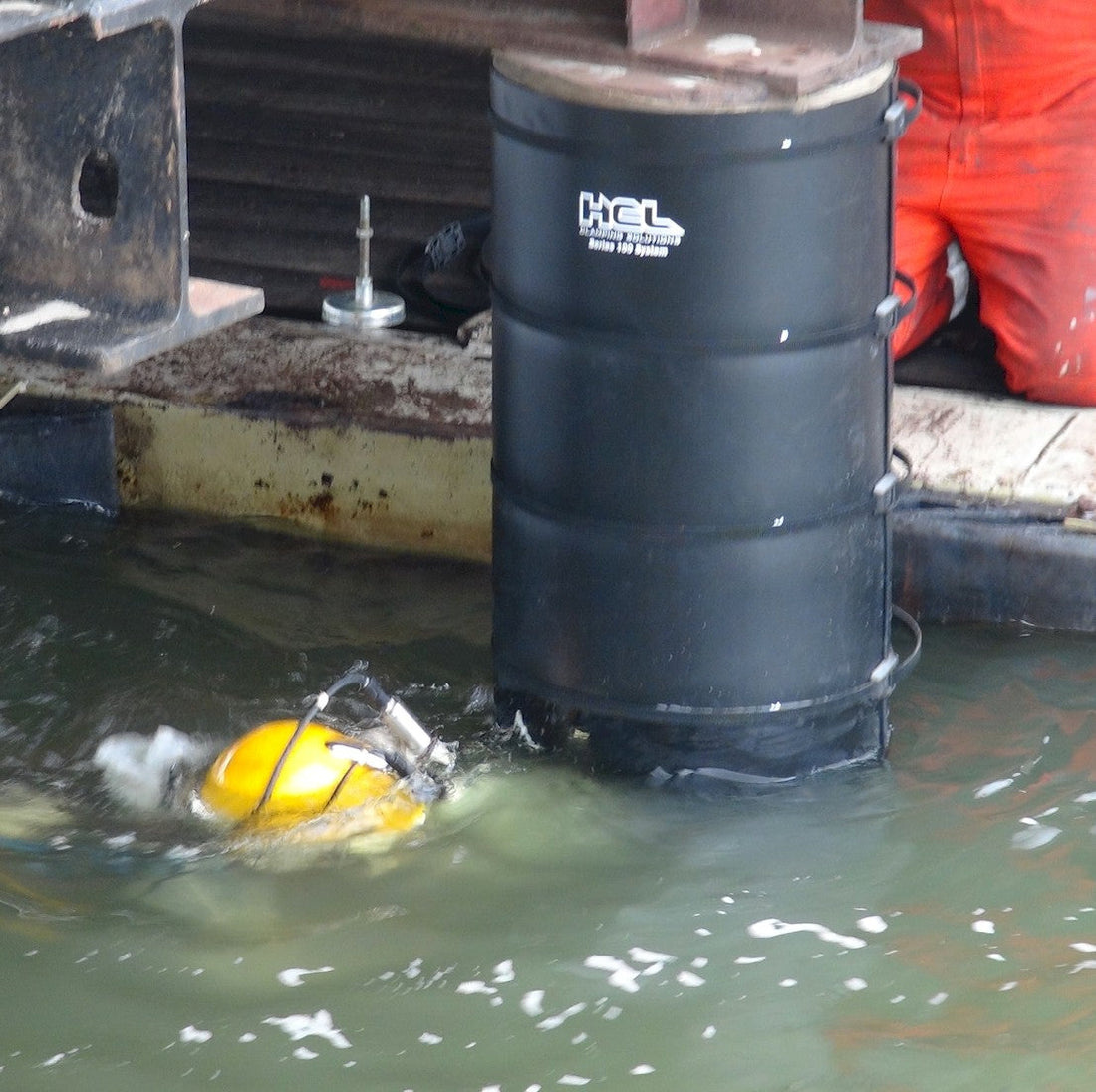

  • Fiberglass Reinforced Plastic (FRP) Jackets: These are high-strength, non-corrosive, custom-formed shells (jackets) placed around the deteriorated section of the pile. The space between the pile and the jacket is then filled with high-strength cementitious grout or epoxy. The cured grout restores the structural integrity, and the FRP jacket provides a permanent, abrasion-resistant barrier against the environment. These are the workhorse solutions for rehabilitating piles in aggressive tidal and splash zones.

  • Specialized Composite Jackets (e.g., GFRP): Utilizing advanced Glass Fiber Reinforced Polymer materials, these jackets are designed for superior strength and impact resistance, often exceeding the strength of traditional materials. They are used in heavy infrastructure areas requiring robust defence against impact and mechanical abrasion.

3. Specialized Non-Metallic Fastening Systems

In environments demanding zero-corrosion solutions for securing components to the piles (such as ICCP cables, anodes, or external structural elements), non-metallic banding is necessary. For example, HCL Fasteners specializes in high-strength polymer products like the Smart Band composite strapping. These non-metallic bands are crucial because they ensure that the act of fastening a component does not introduce a secondary corrosion risk that could compromise the primary pile protection or interfere with active CP systems. This emphasis on non-metallic installation is increasingly important for maximizing the integrity and lifespan of the overall protection system.

4. Heavy-Duty Hose Clamps (Supporting Infrastructure Connections)

While distinct from pile protection, securing critical fluid systems on platforms and marine vessels requires similar attention to corrosion. High-performance clamps prevent leaks under high pressure and thermal stress:

  • T-Bolt/Supra Clamps: Deliver maximum radial sealing force for high-pressure applications (e.g., turbocharger hoses and industrial transfer lines).

  • Constant Tension Clamps: Utilize springs to automatically adjust tension, compensating for temperature fluctuations and preventing cooling leaks.

For these applications, the material choice is vital. Fasteners made from W5 (AISI 316 / A4 Marine Grade Stainless Steel) are mandatory in saltwater environments for their resistance to pitting and crevice corrosion caused by chlorides.
