W2 430 Stainless Steel: What It Means, Where It Works, and Its Key Limitation

W2 is a mixed-material hose clamp grade: the band and housing are 430 stainless steel (AISI 430 / UNS S43000), while the screw remains zinc-plated steel — the same screw material as W1. This gives the assembly better corrosion resistance than all-zinc W1 but makes the screw the assembly's corrosion weak point. Understanding this distinction is critical for correct W2 specification in US environments. Browse HCL's standard worm gear clamps and Mikalor Supra T-bolt clamps for W2 options.

What W2 Means: Material Composition

The W-grade system classifies every component in a hose clamp assembly — not just the band. W2 specifies:

• Band and housing: 430 stainless steel (AISI 430 / UNS S43000) — a ferritic, chromium-only stainless steel with 16–18% chromium forming a passive oxide layer that resists atmospheric corrosion, freshwater exposure, and mild chemical contact. Magnetic (unlike austenitic 304/316). No nickel content — which is why it costs less than W4 (304SS).
• Screw: zinc-plated steel — the same electroplated zinc construction as W1. The screw is the limiting factor in the entire W2 assembly: it will corrode sooner than the stainless band in any aggressive environment, and if it seizes, the clamp cannot be adjusted or removed.

The practical implication: W2 performs better than W1 in moderate environments because the band resists rust. But in road salt conditions or coastal environments, the zinc screw fails on the same timeline as W1 — leaving a corroded screw in a stainless band, and a clamp that cannot be removed at the next service interval. See our material selection guide and corrosion resistance guide.

430 Stainless Steel: US Technical Context

430 stainless steel (AISI 430 / UNS S43000) is specified in ASTM A240. Key properties relevant to hose clamp performance:

• Chromium: 16–18% — the element forming the self-healing passive oxide layer that gives 430SS its corrosion resistance
• No nickel, no molybdenum — unlike austenitic 304SS (W4) and 316SS (W5); this makes 430SS ferritic, magnetic, and lower cost
• Magnetic — 430SS is attracted to magnets; this is the simple field test to distinguish W2/430SS from W4/304SS and W5/316SS (both non-magnetic austenitic grades)
• Less ductile at low temperatures — ferritic 430SS has a ductile-to-brittle transition temperature higher than austenitic grades; in extremely cold US climates, the band is less impact-resistant than W4
• Susceptible to chloride pitting — 430SS lacks the molybdenum that gives 316SS (W5) its resistance to chloride-initiated pitting; not suitable for saltwater marine or Gulf Coast coastal environments

Where W2 is Appropriate in the US

W2 is correctly specified for inland US environments with moderate outdoor exposure where the zinc screw's corrosion timeline is acceptable and chloride exposure is absent:

• Outdoor use in dry inland states — Southwest (Arizona, Nevada, New Mexico), inland Mountain West, interior Southeast — where road de-icing salt is used sparingly or not at all, and atmospheric chloride is low
• HVAC exterior units — outdoor condenser and air handler connections in non-coastal US installations. See our HVAC guide.
• Agricultural equipment in drier climates — Midwest dryland farming and Great Plains agricultural equipment not subjected to heavy chemical fertilizer exposure. See our agricultural guide.
• Industrial MRO in non-chemical environments — factory connections exposed to general humidity but not acid, alkali, or chloride chemistry. See our industrial manufacturing guide.
• Mikalor Supra T-bolt W2 grade — the barrel-nut design of the Supra recesses the bolt from direct environmental exposure; W2 (430SS band, galvanised bolt) is a cost-effective Supra specification where full W5 is unnecessary.

Where W2 is Not Appropriate

• US road salt environments — Midwest, Northeast, and Great Lakes states where sodium chloride de-icing attacks the zinc screw within one to two winters
• Coastal and marine — Atlantic, Pacific, and Gulf Coast salt spray environments; 430SS band pits progressively in chloride atmosphere without the molybdenum protection of W5 316SS. See our marine guide.
• Chemical processing — any exposure to acids, alkalis, or chloride-containing process chemistry requires W4 or W5 minimum
• Food, dairy, and pharmaceutical — W2's zinc screw disqualifies it from sanitary contact applications

W-Grade Comparison

Grade	Band/Housing	Screw	US Use Case
W1	Zinc-plated steel	Zinc-plated steel	Dry indoor only
W2	430SS (AISI 430)	Zinc-plated steel	Dry outdoor, non-salt-belt, moderate environments
W4	304SS all	304SS all	US professional standard — road salt, outdoor, automotive
W5	316SS all	316SS all	Marine, Gulf Coast offshore, chemical processing

Conclusion

W2 430 stainless steel is a cost-effective intermediate grade for dry outdoor applications in non-salt-belt US states — better than W1 for the band, but limited to the same zinc screw timeline in aggressive environments. For any US application involving road salt, coastal exposure, or chemical contact, W4 (all-304SS) is the correct professional minimum. Browse standard worm gear clamps and Mikalor Supra T-bolt clamps for W2 options, or contact our Houston team at (281) 717-1145 for grade selection advice.

Frequently Asked Questions: W2 430 Stainless Steel Hose Clamps

Is W2 better than W1 for outdoor use?

Yes — the 430SS band in W2 resists atmospheric corrosion significantly better than W1's zinc-plated band. However, the zinc screw in W2 is the same grade as W1 and will corrode at a similar rate in aggressive environments. In dry inland US states without road salt, W2 offers meaningfully longer service life outdoors. In the Midwest, Northeast, or Great Lakes, the screw fails on a similar timeline to W1. For road salt environments, W4 (all-304SS) is the minimum correct specification.

How do I tell W2 (430SS) from W4 (304SS) in the field?

Use a magnet. 430SS (W2 band) is ferritic and magnetic — a magnet sticks clearly. 304SS (W4) is austenitic and non-magnetic — a magnet does not stick, or only very weakly. This is a reliable field test when the grade is not stamped on the clamp. Note that the zinc-plated screw in W2 is also magnetic, so test the band specifically.

Can W2 be used for food or pharmaceutical applications?

No. W2's zinc-plated screw disqualifies it from any food-contact, sanitary, or pharmaceutical utility application. All-304SS (W4) is the minimum for food and pharmaceutical utility connections; all-316SS (W5) is required where cleaning chemicals or chloride sanitizers are used. See our food and beverage guide.

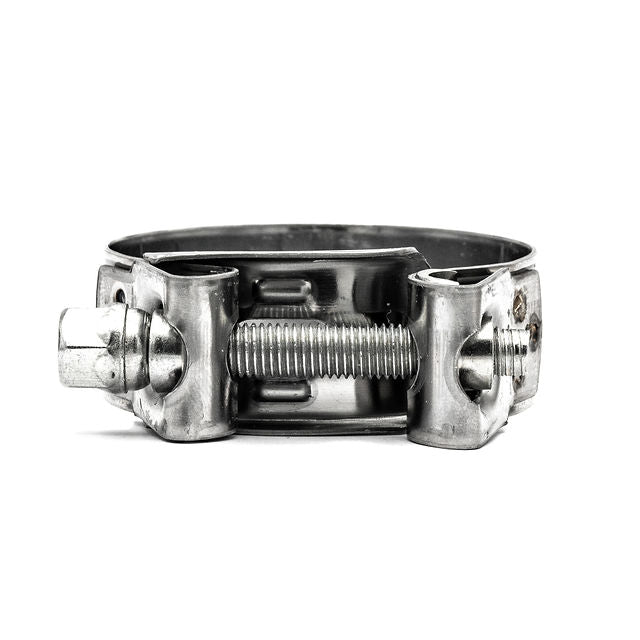

Why does Mikalor Supra come in a W2 grade?

The Mikalor Supra T-bolt barrel clamp's design recesses the bolt inside the barrel nut mechanism, reducing its direct environmental exposure compared to an exposed worm drive screw. W2 (430SS band, galvanised bolt) is therefore a practical cost-effective grade for Supra applications where the band's corrosion resistance is the primary concern and full W5 is not required.
