W5 316 Stainless Steel: Marine Grade, Gulf Coast Offshore, and Chemical Processing Hose Clamps

W5 means every component — band, housing, and screw — is all 316 stainless steel (AISI 316 / UNS S31600). The molybdenum addition that distinguishes 316 from 304 is what makes W5 the correct specification where chloride-induced pitting is the primary failure mode: saltwater marine, Gulf of Mexico offshore topsides, chemical processing, and pool/water treatment. For HCL's Houston customer base, W5 is the Gulf Coast specification — every outdoor connection at a coastal Texas facility or offshore platform should be W5. Browse HCL's Mikalor W5 range, Ideal Tridon 316SS marine grade, and heavy-duty W5 T-bolt clamps.

What W5 Means: All-316SS and the Molybdenum Difference

Every component in a W5 hose clamp is all-316 stainless steel. The single compositional difference from W4 (304SS) is the addition of molybdenum (typically 2–3%):

• Chromium: 16–18% — forms the passive oxide layer that gives all stainless steel its base corrosion resistance
• Nickel: 10–14% — stabilises the austenitic structure; more nickel than 304 (8%) improves corrosion resistance and ductility
• Molybdenum: 2–3% — the critical addition; specifically disrupts the chloride ion attack mechanism that causes pitting corrosion in 304SS

The US standard for 316SS plate and sheet is ASTM A240; bar stock falls under ASTM A276. See our material selection guide and corrosion resistance guide.

316 vs 316L: Does It Matter for Hose Clamps?

316L (UNS S31603) is the low-carbon variant of 316SS, with carbon content ≤0.03% vs ≤0.08% for standard 316. The low carbon content prevents carbide precipitation in the heat-affected zone of welds — the primary reason 316L is specified for welded process piping. For hose clamps as non-welded mechanical components, the 316 vs 316L distinction is less critical than for process piping. However, procurement teams standardising on 316L throughout a facility for documentation consistency can specify 316L hose clamps; HCL can provide 316L options with material certificates. Contact our Houston team to discuss.

The Non-Perforated Band: Material and Design Both Matter

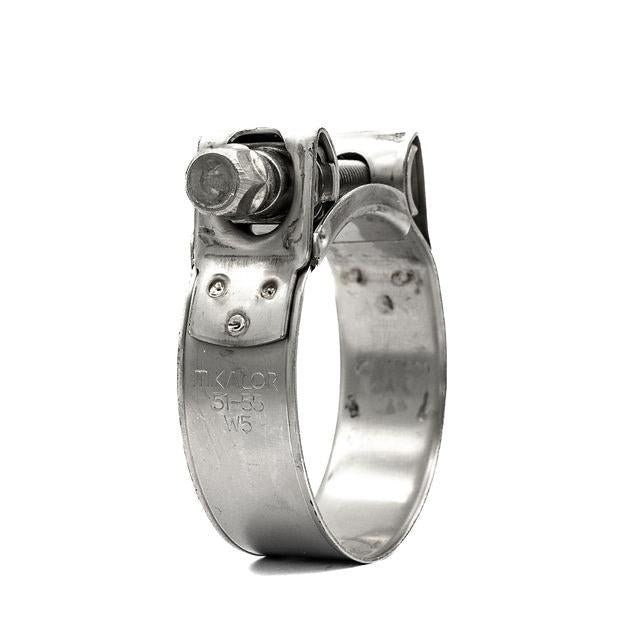

For marine and coastal applications, specifying W5 316SS is necessary but not always sufficient — the band design also matters. Perforated worm drive bands accumulate salt deposits in the perforation holes and under the band edges, initiating crevice corrosion even in 316SS in severe marine environments. For Gulf Coast offshore, saltwater marine, and direct sea-spray applications, specify W5 clamps with a smooth non-perforated inner band — such as the Mikalor ASFA-S W5 design. Standard perforated-band 316SS clamps are appropriate for chemical and industrial W5 applications where the band is not in continuous salt spray contact. See our crevice corrosion guide.

Where W5 is Required in the US

Gulf Coast Offshore and Coastal Texas Industrial

The Gulf of Mexico offshore sector and coastal Texas refineries and petrochemical plants require W5 non-negotiable for every outdoor and process area utility connection. See our oil and gas guide.

Marine: Saltwater Immersion and Splash Zone

Any hose clamp connection on a vessel or dock structure that sees regular saltwater contact requires W5. W4 (304SS) is the correct grade for freshwater and atmospheric coastal use; W5 is required where seawater contacts the clamp. See our marine guide.

Chemical Processing

Chloride-containing process chemistry — hydrochloric acid, bleach, ferric chloride, and many industrial cleaning agents — attacks 304SS (W4) through pitting; 316SS (W5) resists these at typical utility connection concentrations. See our chemical compatibility guide.

Swimming Pools and Water Treatment

Dissolved chlorine and chloride compounds in pool water at treatment concentrations are sufficient to initiate pitting in 304SS over a swimming season. W5 is the correct specification for pool equipment hose connections.

Food and Pharmaceutical — Aggressive Cleaning Agents

Where CIP cleaning circuits use chlorine-based sanitizers or aggressive acid cleaners, W5 provides the additional resistance that W4 lacks in chloride cleaning chemistry. See our food and beverage guide and pharmaceutical guide.

W-Grade Comparison

Grade	All Components	US Specification For
W1	Zinc-plated mild steel	Dry indoor only
W2	430SS band / zinc screw	Dry outdoor, non-salt-belt inland states
W4	All 304SS	Automotive/road salt, outdoor, food, industrial
W5	All 316SS	Gulf Coast offshore, saltwater marine, chemical processing, pools

Conclusion

W5 all-316SS is the correct specification wherever chloride-initiated pitting is the failure mode. Browse the Mikalor W5 range, Ideal Tridon 316SS marine grade, and heavy-duty W5 T-bolt clamps, or contact our Houston team at (281) 717-1145 for 316L material certificates and offshore documentation packages.

Frequently Asked Questions: W5 316SS Hose Clamps

What is the difference between 316SS and 304SS in a hose clamp?

The only compositional difference is molybdenum (2–3% in 316SS, absent in 304SS). In dry or freshwater environments, both grades perform similarly. In chloride environments — seawater, Gulf Coast brine, pool water, chlorine-based cleaning chemistry — molybdenum in 316SS disrupts the chloride ion attack that causes pitting corrosion in 304SS. If your application involves chloride at significant concentration, 316SS (W5) is the correct grade; otherwise W4 (304SS) provides equivalent performance at lower cost.

Do I need W5 for a saltwater boat?

Yes — for any connection that sees regular seawater contact: engine raw-water cooling, bilge pumps, through-hulls, exhaust wet systems, and deck equipment. W4 (304SS) is adequate for interior freshwater circuits and above-waterline engine bay connections not directly wetted with seawater. When in doubt, specify W5 throughout — the cost premium over W4 is modest and the service life improvement in saltwater is significant.

Is W5 316SS required for Gulf Coast offshore?

Yes. Gulf of Mexico topsides connections should be W5 316SS minimum. The combination of warm Gulf seawater atmosphere, high ambient temperatures, and potential process chemical exposure make W5 the standard specification for all outdoor Gulf Coast facility and offshore platform hose connections. HCL supplies W5 from its Houston warehouse — contact our Houston team for offshore trade account pricing and 316L documentation packages.

Should I specify 316 or 316L for hose clamps?

For hose clamps as non-welded mechanical components, standard 316SS (W5) provides all the chloride corrosion resistance the application requires. 316L's low-carbon benefit is not relevant to clamps that are never welded in service. However, if your facility procurement system is standardised on 316L throughout for consistency with process piping specifications, HCL can supply 316L-confirmed W5 clamps with material certificates. Contact our Houston team to discuss.
