| Manufactured By | Jubilee |
|---|---|
| HCL P/N | JUB-MB-W4 |
| Series | Jubilee Multiband |
| Corrosion Resistance | Excellent |
| Corrosion Specification | 1000 hours NSS Test |
| Hose Clamp Width in/mm | 7/16 in (11.0mm) |
| Band Style | Embossed Band |
| Band Material | 304 Stainless Steel |
| Bolt/Screw Type | Slotted Hex |
| Bolt/Screw Material | 304 Stainless Steel |
| Bolt/Screw Size | 1/4 in (7.0mm) A/F |
| Finish | Stainless Steel |
| Colour | Silver |
| Recommended Torque Nm | 3.4 |
| Max Fitting Torque Nm | 4.5 |
| Country of Manufacture | United Kingdom |
| Tariff Code | 7326 90 92 |
| Hazardous Goods | No |
| RoHS Compliant | Yes |

|
|
Type
|
Reel Length
|
Pack Quantity
|
Screw Size
|
HCL P/N
|
MFG P/N
|
Price
|
Stock
|
Order Qty
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|

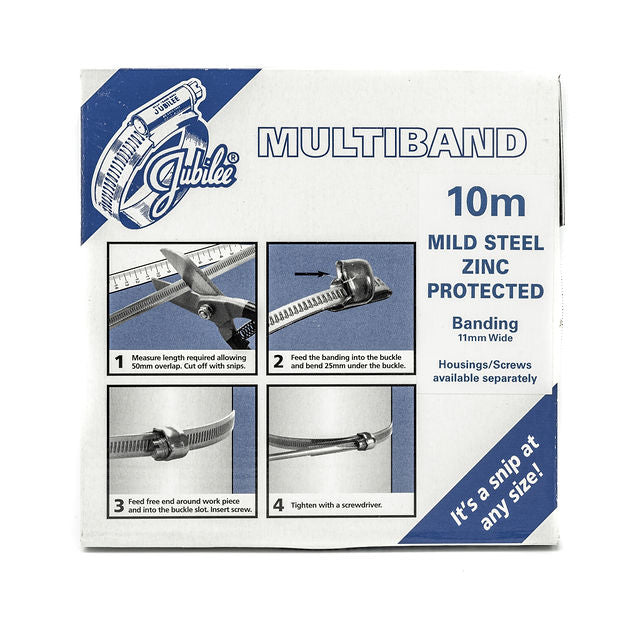

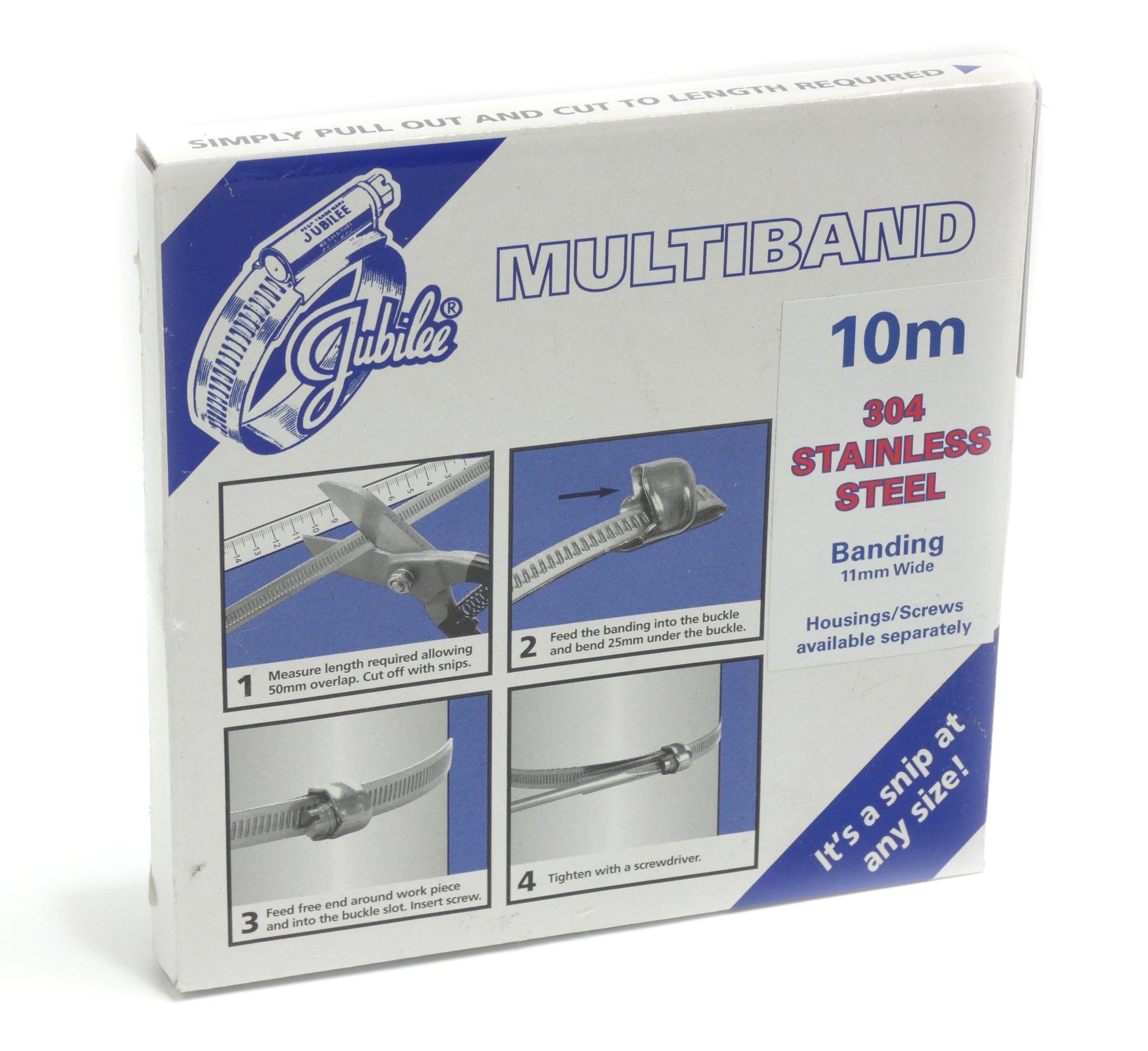

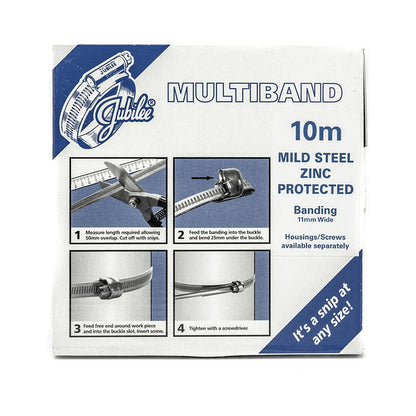

10 meter Reel - | 33 ft (10m) - | 1 Reel - | - | JUB-MB-11-10M-W4 - | MB1801 - | $102.99 | 7 |
|
|
|

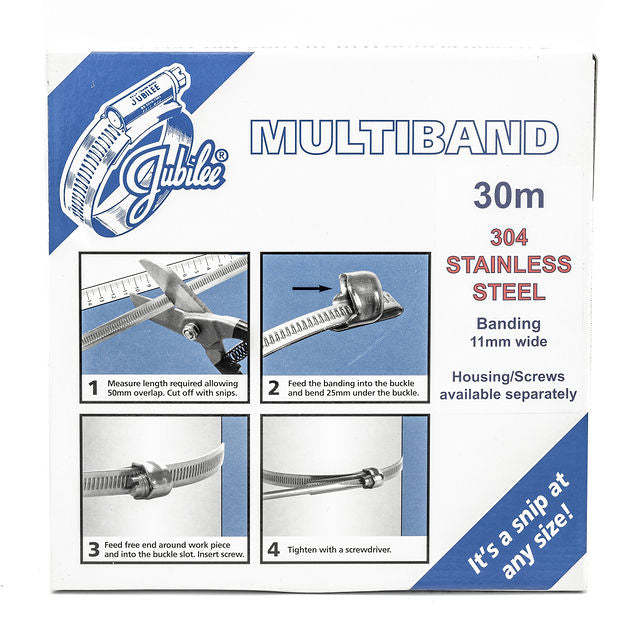

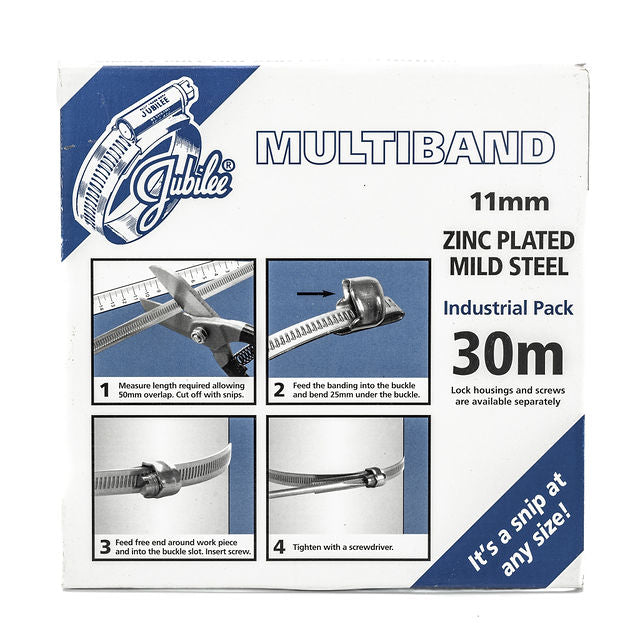

30 meter Reel - | 100 ft (30m) - | 1 Reel - | - | JUB-MB-11-30-W4 - | MB1802 - | $280.90 | 0 |
|
|
|

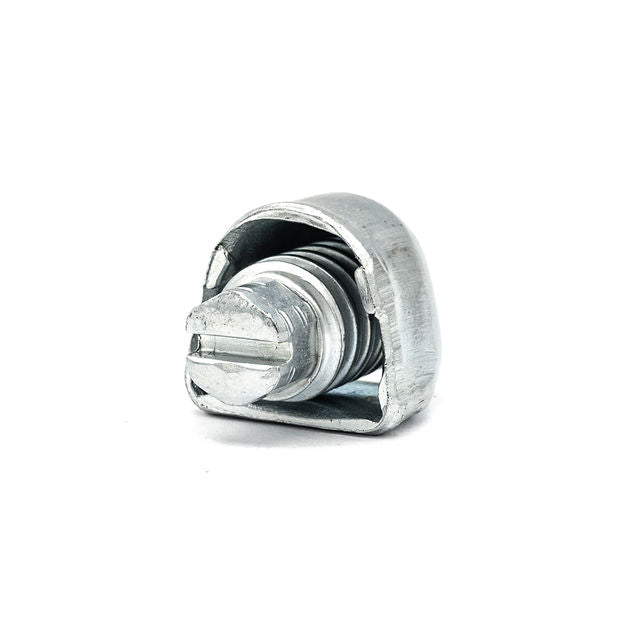

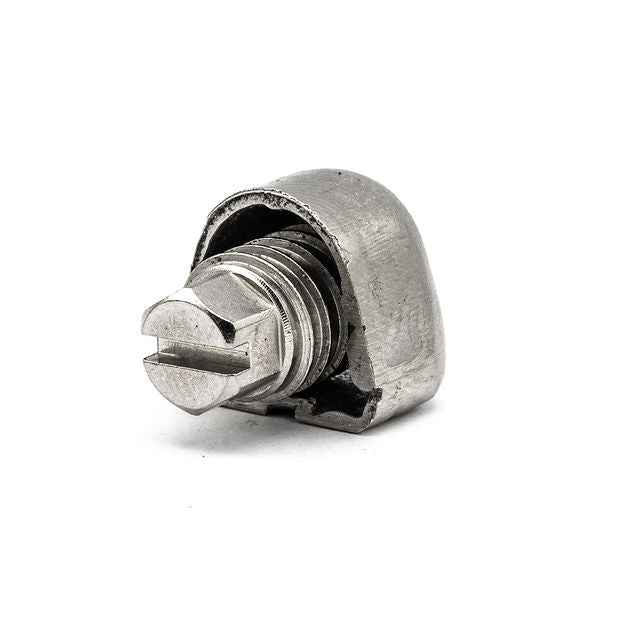

Slotted Screw - | - | 25 pcs - | 1/4 in (7.0mm) A/F - | JUB-MB-11-SC-W4-25 - | MB1804 - | $86.00 | 0 |
|
|
|

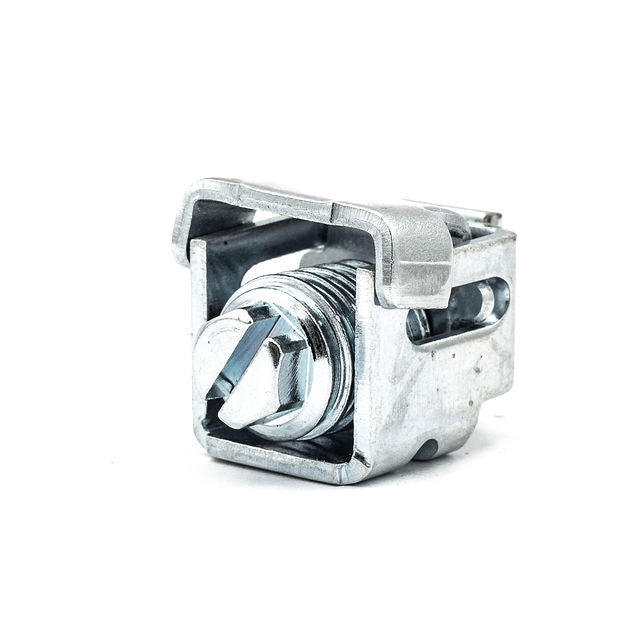

Quick Release Screw - | - | 25 pcs - | 1/4 in (7.0mm) A/F - | JUB-MB-11-CHSC-W4-25 - | MB1805 - | $186.25 | 0 |
|
|
|

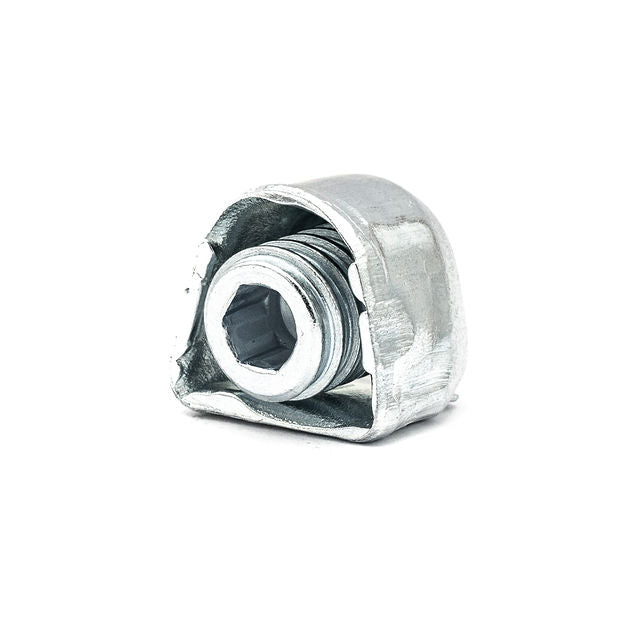

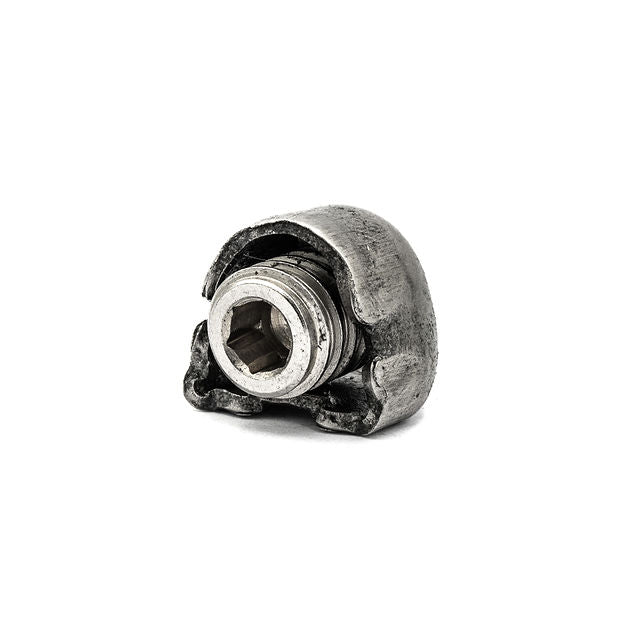

Allen Key Screw - | - | 25 pcs - | 3/16 inch Allen Key Slot - | JUB-MB-11-AL-W4-25 - | MB1804 - | $95.50 | 0 |
|
|
|

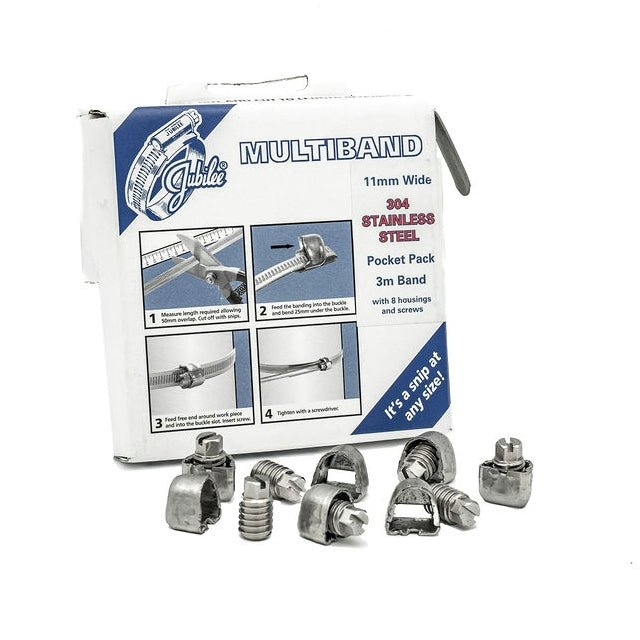

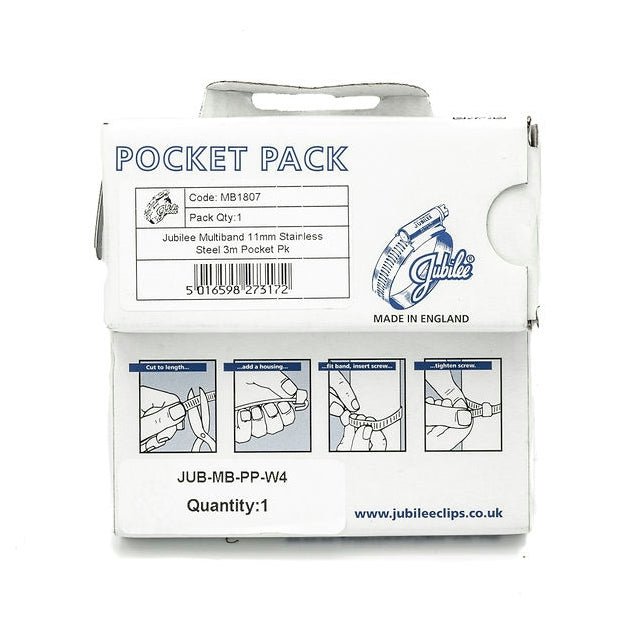

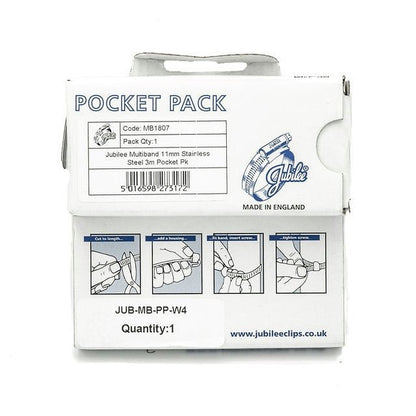

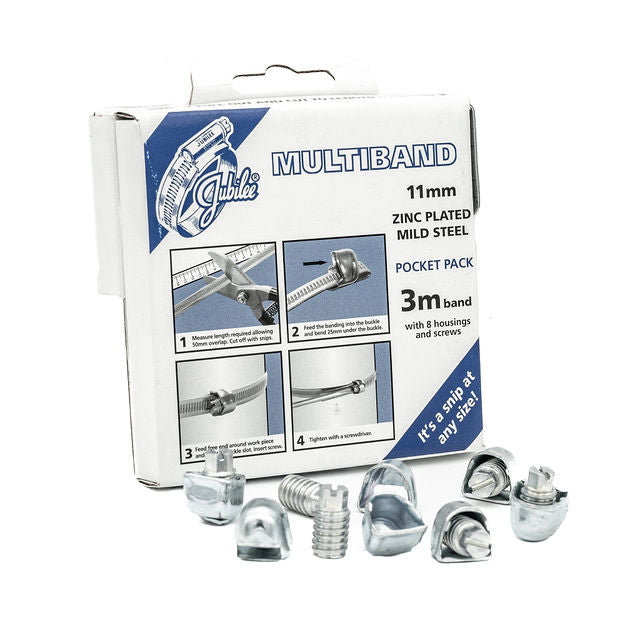

Pocket Pack - | 10 ft (3m) - | 1 x Reel & 8 x Slotted Screws - | 1/4 in (7.0mm) A/F - | JUB-MB-PP-W4 - | MB1807 - | $90.75 | 4 |
|
|
|

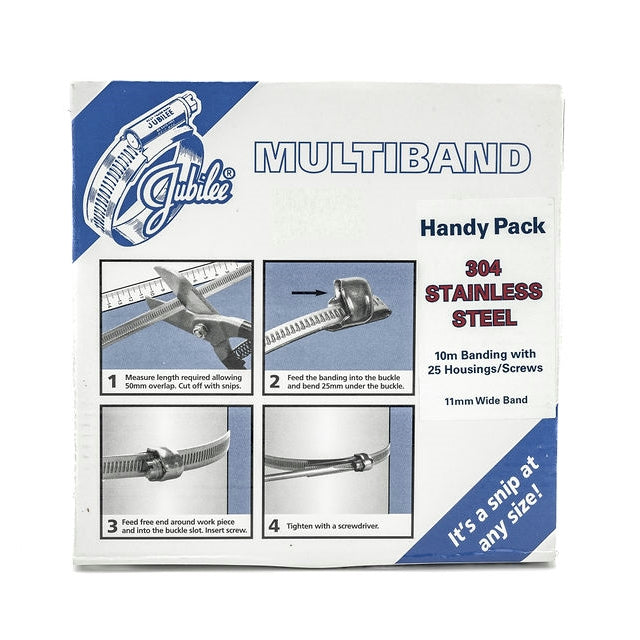

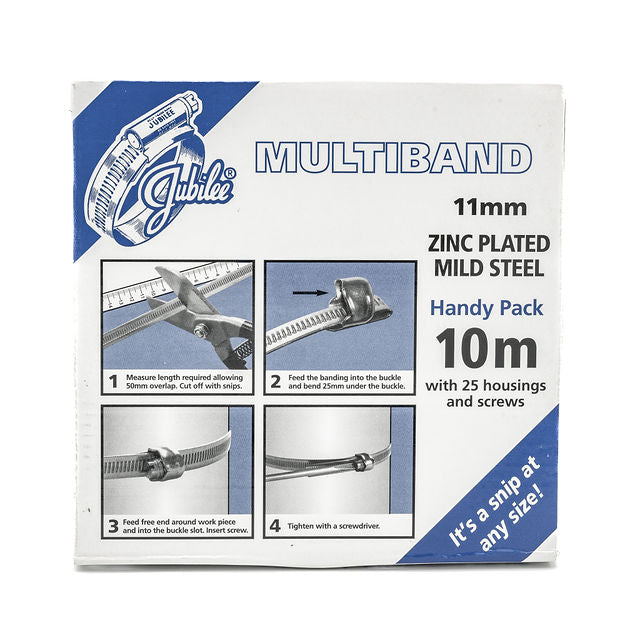

Handy Pack - | 33 ft (10m) - | 1 x Reel & 25 x Slotted Screws - | 1/4 in (7.0mm) A/F - | JUB-MB-HP-W4 - | MB1806 - | $197.70 | 2 |
|
Description
The 7/16 inch (11.0mm) wide Jubilee® Multiband is a self-assembly, endless banding or screw band system, which allows the user to cut the band to the desired length. Used in areas such as heating, ventilation and air conditioning (HVAC), sign fixing, conduit and cable retention and lagging, this product is highly versatile.

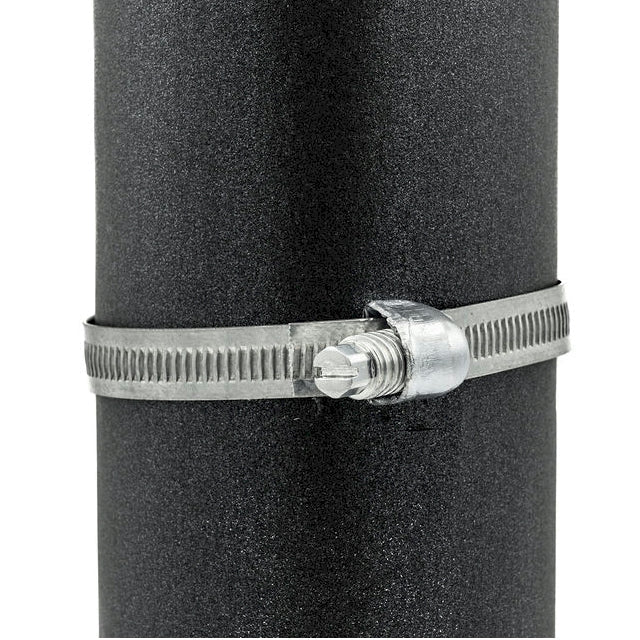

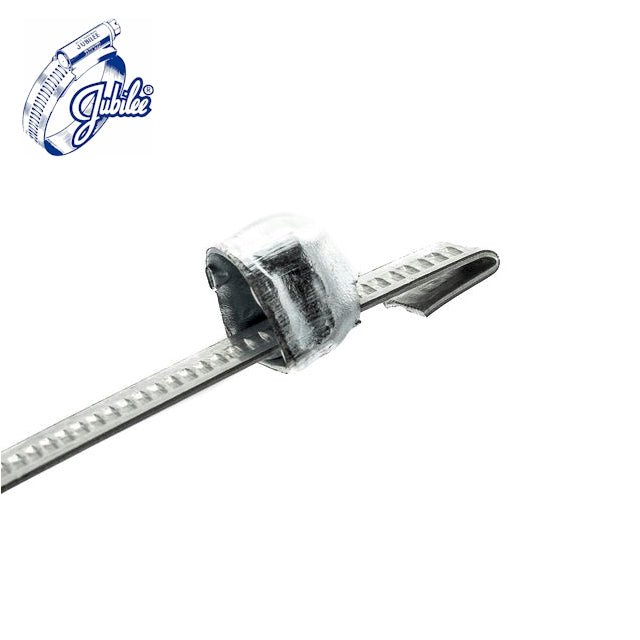

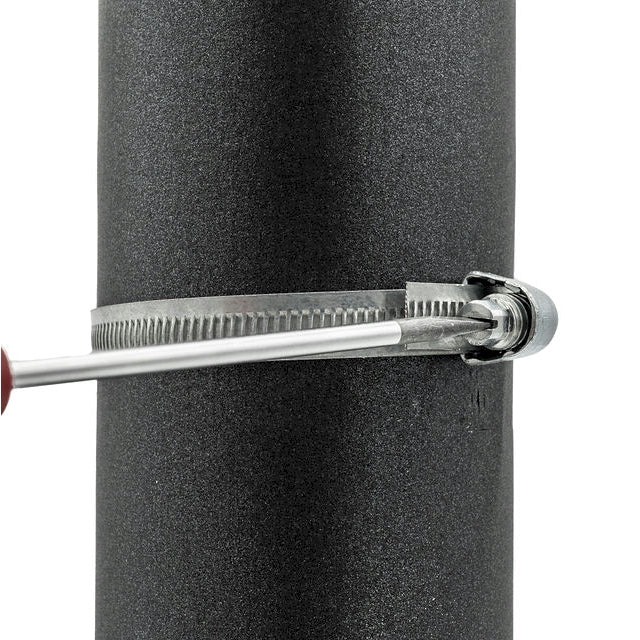

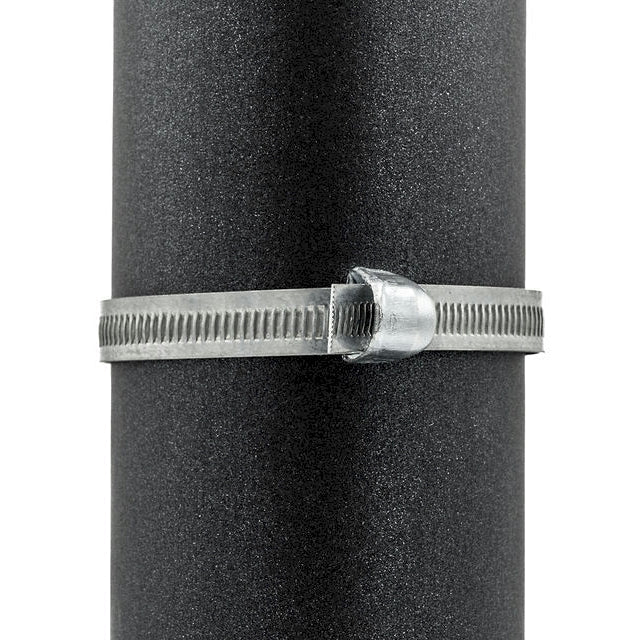

The Jubilee® Multiband system comprises a worm drive steel strip that is cut to the length required, and screw housings which slide onto the band. The band can then be tightened onto pipes or ducts of almost any diameter. A number of screw and housing designs and
two band widths are available to suit any application.
The Product is available in a combination of separate reels and screws and some combined kits. The 304SS version offers enhanced corrosion resistance.
